UVC50

The UVC50 Full HD PTZ Camera is available in black or white color, has 12X/20X/30X Optical Zoom lens, perfect for different meeting rooms, boardrooms, church and collaborative classrooms. With AI Auto Tracking and Auto Framing, and full interface outputs (HDMI, SDI, USB3.0, LAN, POE, NDI), it delivers high quality video for video conferencing, education, and live streamings.

  • 4Kp60 Ultra HD: 1/1.8-inch UHD CMOS sensor, 8.42 MP
  • 1080p Full HD & Low-Light Performance.
  • Multiple Zoom Options: 12X, 20X, or 30X optical zoom with wide FoV, covering small to large conference rooms.
  • Full Interface: USB3.0, 3G-SDI, HDMI, LAN (POE)
  • Auto Framing & Auto Tracking
  • NDI® & Streaming Protocols: Supports FULL NDI & NDI®|HX2 (optional), SRT/RTSP/RTMP for professional live streaming.
  • Flexible Control & Presets : Supports VISCA, VISCA over IP, PELCO, Onvif; up to 255 preset positions for quick switching.
  • Black and White Color for option
Ask for quote

Specifications

Model

UVC50-12X

UVC50-20X

UVC50-30X

Camera Specification



Sensor

1/2.8 inches, CMOS, Effective Pixels: 2.07MP



Lens

12x, f=3.9m(W)~46.8mm(T),

F1.6~F2.8

20x,f=5.2m(W)~104mm(T),

F1.55~F3.13

30x,f=5.2m(W)~156mm(T),

F1.3~F4.8

Horizontal FOV

72.5°(W)~6.5°(T)

58.7°(W)~3.2°(T)

58.1°(W)~2.14°(T)

Vertical FOV

40.8°(W)~3.7°(T)

32.2°(W)~1.8°(T)

34.1°(W)~1.2°(T)

Signal System

HDMI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50

SDI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50

Digital Zoom

16X

AI Feature

AI Tracking, Auto Framing, Tracking Size, Tracking Sensitivity, AI Guard Position

PoE

Support

Scan Mode

Line by line

Digital Zoom

16X

Minimum Illumination

UVC50-12X: 0.1Lux (F1.8, AGC ON)

UVC50-20X: 0.1Lux (F1.5, AGC ON)

UVC50-30X: 0.1Lux (F1.3, AGC ON)

Shutter

1/50s ~ 1/10000s

DNR

2D & 3D DNR

White Balance

Auto, Indoor, Outdoor, One Push, Auto Tracking, Manual

Backlight Compensation

Support

WDR

OFF/ Dynamic level adjustment

SNR

≥50dB

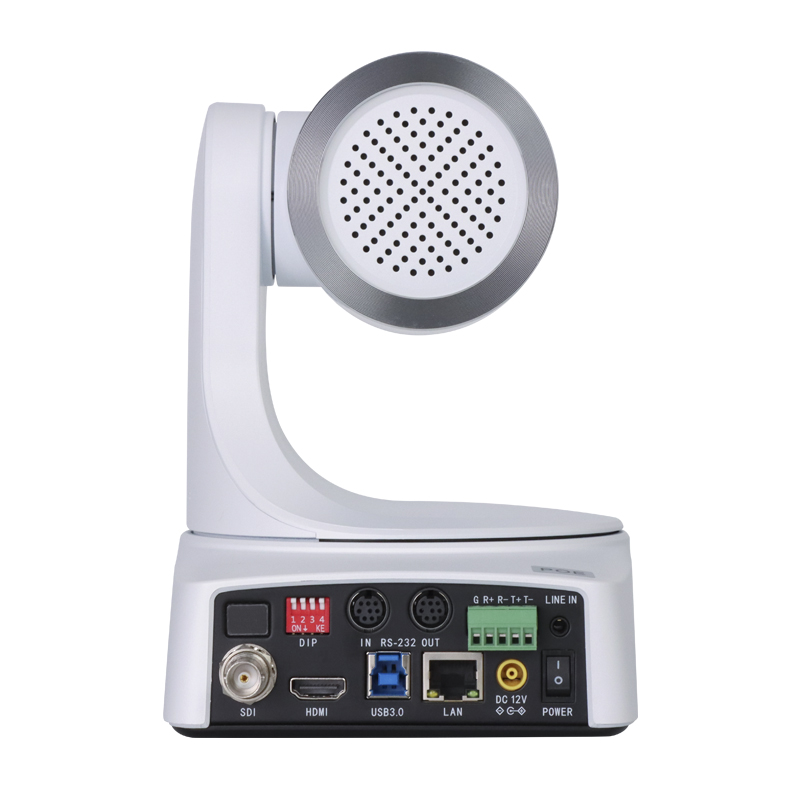

Input/Output Interface

Interfaces

USB 3.0, 3G-SDI, HDMI, LAN, Audio-IN, RS232-IN/OUT, RS422, RS485, NDI (Optional)

Video Output Interfaces

USB3.0, 3G-SDI, HDMI, LAN

Network Interface

RJ45: 10M / 100M adaptive Ethernet port

Audio Interface

1 Line, Line In, 3.5mm

Serial Interface

1 Line, RS232 IN/OUT: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol.

1 Line, RS422/485: 5-Core Phoenix Interface, up to 1200 meters, VISCA/Pelco-D/Pelco-P Protocol.

Power Interface

JEITA type(DC IN 12V)

Audio

Audio Compression

AAC

Audio Bit Rate

128kbps

Network Specification

Video Compression Format

H.264, H.265

Image Stream

First Stream, Second Stream

First Stream Resolution

1920*1080, 1280*960, 1280*720, 720×576, 720*480, 640*480

Second Stream Resolution

640*480, 640*360, 480*360, 352*288, 320*240, 176*144

Bit Rate Control

VBR, CBR

Frame Rate

1fps ~ 60fps

Protocols

TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI®HX2 (Optional)

USB Specification

Support operating system

Window7 and above, MacOS, Linux, Android

Color space / compression

YUY2, MJPEG

Resolution

1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240

Frame Rate

Max.60

USB video communication protocol

UVC 1.1

UVC PTZ control

Support

PTZ Specification

Pan/Tilt Rotation

355°, -30°~+90°

Pan Speed

1°~ 80°/s

Tilt Speed

1°~ 60°/s

Image Flip

Support

Image Freeze

Support

Preset Number

255 presets (10 presets by remote controller)

Other Specification

Input Voltage

DC 12V /PoE (802.3af (Optional))

Input Current

1.5A (Max.)

Operating Temperature

0° C ~ 40° C

Storage Temperature

-10~60℃

Color

Black, White (Optional)

Power Consumption

18W (Max.)

Net Weight

1.2kg

Dimension

(W)134*(D)174*(H)187mm

Accessory

Package

DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable

Optional Accessories

Ceiling / Wall Mount (Extra Cost)
