Strong AI Powered: Auto Framing, Auto Tracking
Wide View Angle: 72.5° FOV, 12X Optical Zoom, 16X Digital Zoom

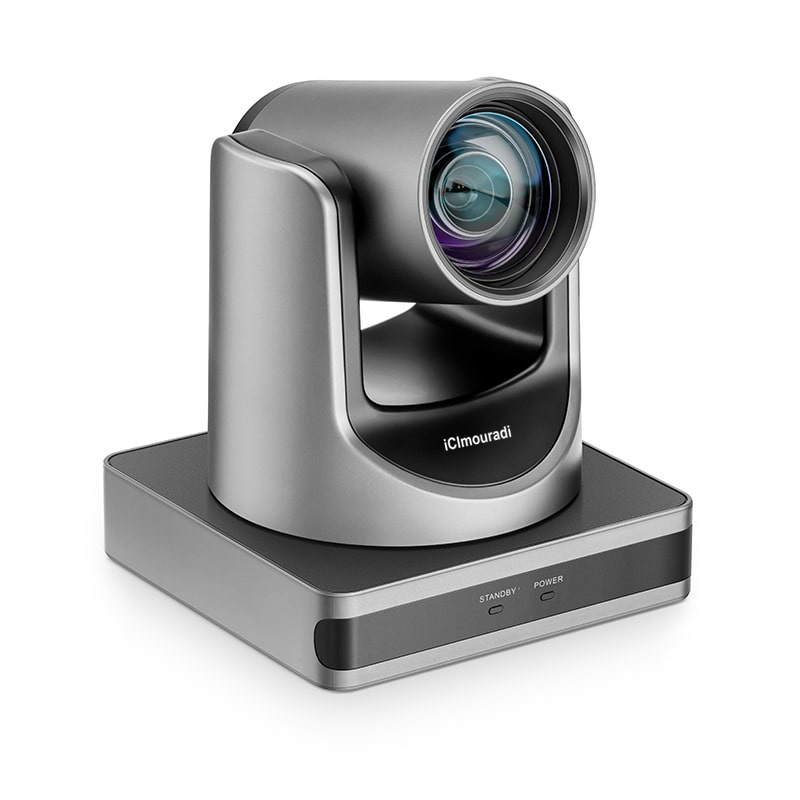

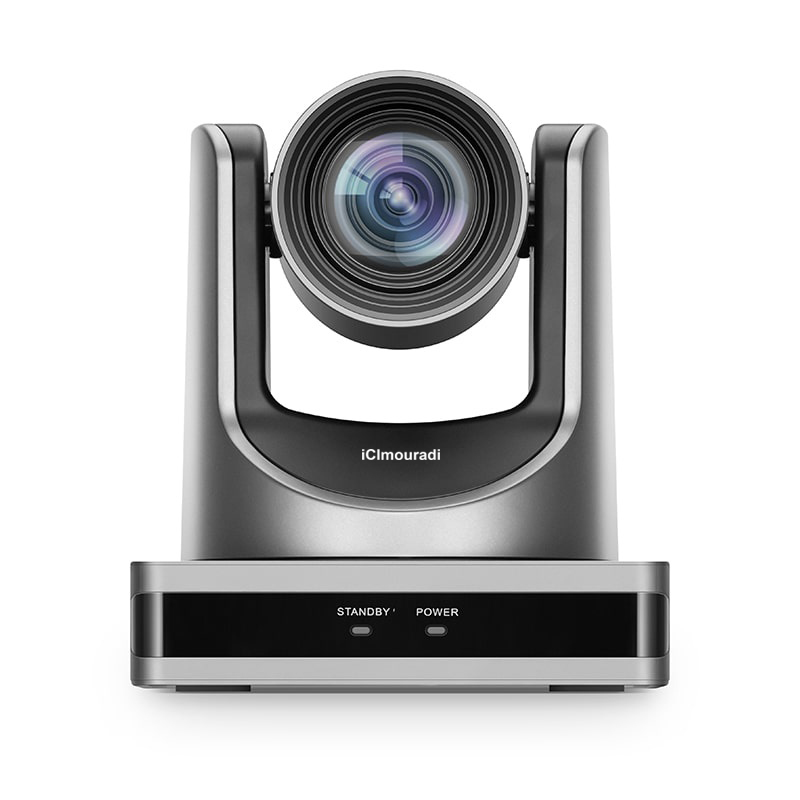

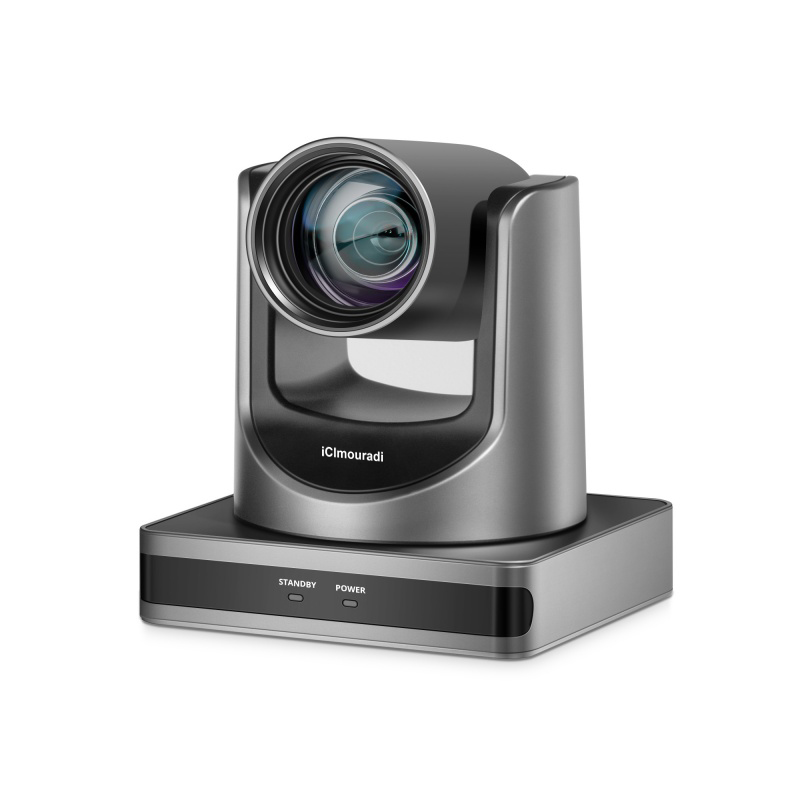

UVC12XU3 1080p USB Camera has USB3.0 Type C interface, support PoE power supply (100W). Camera can work with PC, Laptop and Desktop directly.
UVC12XU3 is UVC compatible camera, compatible with Zoom, Teams, Google Meeting, Bluejeans, Lifesize, Easymeeting, Trueconf…
UVC12XU3 USB webcamera uses AI algorithms to adjust the camera’s angle and focus in real time, automatically detect and track individuals during a meeting or presentation, ensuring all participants in the middle of the screen.
UVC12XU3 is auto tracking video conference camera. When person is moving, the PTZ camera continuously adjusts the pan, tilt, and zoom to keep the person centered in the image, delivering a professional, hands-free experience for meeting, lecture, and live broadcast.
UVC12XU3 camera is equipped with advanced low-light technology. Even in the dim environment, the camera will deliver clear, bright and vivid images.
|
Model |
UVC12XU3 |
UVC20XU3 |
|
Camera Parameter |
||
|
Sensor |
1/2.8 inch high quality HD CMOS sensor |
|
|
Effective Pixels |
16: 9, 2.07 megapixel |
|
|
Signal system |
1080P60, 1080P50, 1080P30, 1080P35, 720P60, 720P50 |
|
|
Optical Zoom |
12X f3.5mm ~ 42.3mm |
20X F=4.7mm ~ 94mm |
|
View Angle |
72.5°~ 6.9° |
61.1°~ 3.5° |
|
AV |
F1.8 ~ F2.8 |
F1.6 ~ F3.6 |
|
Digital Zoom |
16X |
|
|
Minimum Illumination |
0.5Lux (F1.8, AGC ON) |
|
|
DNR |
2D & 3D DNR |
|
|
White Balance |
Automatic, indoor, outdoor, one button, manual, color changing temperature |
|
|
Focus |
Auto/Manual/One push focus |
|
|
Aperture/Electronic Shutter |
Auto/Manual |
|
|
BLC |
ON/OFF |
|
|
WDR |
OFF/ Dynamic level adjustment |
|
|
Video Adjustment |
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
|
|
SNR |
>55dB |
|
|

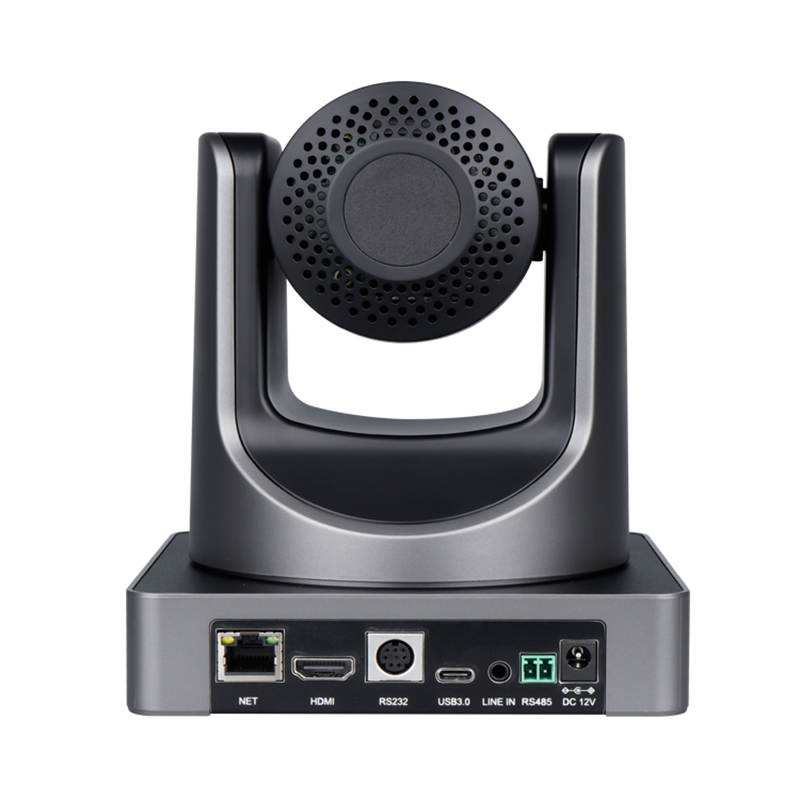

Input/Output Interface |
||
|
Interfaces |
USB 3.0, type-C, HDMI, LAN, RS232, RS485 |
|
|
Video Output Interfaces |
HDMI, LAN, USB3.0 |
|
|
Image Stream |
Double stream output |
|
|
Video Compression Format |
H.264/MJEPG |
|
|
Control Protocol |
VISCA/Pelco-D/Pelco-P; Baud Rate:115200/9600/4800/2400bps |
|
|
Audio Input Interface |
Line In, 3.5mm audio interface |
|
|
Network Interface |
RJ45：10M / 100M adaptive Ethernet port |
|
|
Network Protocol |
RTMPS, RTSP, RTMP, ONVIF, GB/T28181, Network VISCA Control Protocol, Support remote upgrade, reboot and reset. |
|
|
Control Interface |
RS232, RS485 |
|
|
Power Adapter |
Input: AC110V-AC220V; Output: DC12V/1.5A |
|
|
Input voltage |
DC 12V/DC 5V/PoE(802.3af) |
|
|
Input current |
12V 1.0A(Max)/5V 1.5A(Max) |
|
|
Power Consumption |
12W(Maximum) |
|
|
USB Features |
||
|
Support operating system |
Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android |
|
|
Color space / compression |
YUY2 / H.264 / MJPEG |
|
|
Video format |
YUY2 (Isochronous mode): maximum 1080P@60fps H.264 AVC: maximum 1080P@60fps H.264 SVC: maximum 1080P@60fps MJPEG: maximum 1080P@60fps |
|
|
USB Audio |
Support |
|
|
USB video communication protocol |
UVC 1.1~1.5 |
|
|
UVC PTZ control |
Support |
|
|
IP Features |
||
|
Video coding standard |
H.264/MJEPG |
|
|
Video stream |
First code stream, Second code stream |
|
|
First bitstream resolution |
1920×1080,1280×720,1024×576,960×540,640×480,640×360 |
|
|
Second bitstream resolution |
1280×720,1024×576,720×576(50Hz Support), 720×480(60Hz Support), 720×408, 640×360, 480×270, 320×240, 320×180 |
|
|
Video bit rate |
32Kbps ~ 102400Kbps |
|
|
Rate control |
Variable bit rate, Fixed bit rate |
|
|
Frame rate |
50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps |
|
|
Audio compression standard |
AAC |
|
|
Audio bit rate |
96Kbps, 128Kbps, 256Kbps |
|
|
Protocal |
TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc |
|
|
AI Feature |
AI Tracking, Auto Framing |
|
|
PTZ Parameter |
||
|
Pan/Tilt Rotation |
±170°, -30°~+90° |
|
|
Horizontal rotation speed range |
2.7°~ 35.7°/s |
|
|
Vertical rotation speed range |
2.7°~ 31.5°/s |
|
|
Flip horizontally and vertically |
Support |
|
|
Image freeze |
Support |
|
|
Preset Number |
255 presets (10 presets by remote controller) |
|
|
Other Parameter |
||
|
Stored Temperature |
-10℃~+60℃ |
|
|
Stored Humidity |
20%~95% |
|
|
Working Temperature |
-10℃~+50℃ |
|
|
Working Humidity |
20%~80% |
|
|
Dimension |
150mm×150mm×167.5mm |
|
|
Weight (around) |
1.4KG |
|
|
Accessory |
||
|
Package |
Power supply, USB3.0 connection cable, Remote controller, User manual |
|
|
Optional Accessories |
Ceiling / Wall Mount (Extra Cost) |
|
