Model
|
UVC61-12X-NDI
|
UVC61-20X-NDI
|
UVC61-30X-NDI
|
|
Camera Specification
|
|
|
Sensor
|
1/2.8 inches, CMOS, Effective Pixels: 2.07MP
|
|
|
Lens
|
12x, f3.5mm ~ 42.3mm,
F1.8 ~ F2.8
|
20x, f4.42mm ~ 88.5mm,
F1.8 ~ F2.8
|
30x, f4.42mm ~ 132.6mm,
F1.8 ~ F2.8
|
|
Horizontal FOV
|
72.5° ~ 6.9°
|
60.7° ~ 3.36°
|
60.7° ~ 2.28°
|
|
Vertical FOV
|
44.8° ~ 3.9°
|
34.1° ~ 1.89°
|
34.1° ~ 1.28°
|
|
Signal System
|
1080P60, 1080P59.94, 1080P50, 1080I60, 1080I59.94, 1080I50, 1080P30, 1080P29.97, 1080P25, 720P60, 720P59.94, 720P50
|
|
Digital Zoom
|
16X
|
|
AI Feature
|
AI Tracking
|
|
PoE+
|
Support
|
|
Scanning Mode
|
Progressive
|
|
Digital Zoom
|
16X
|
|
Minimum Illumination
|
0.5Lux (F1.8, AGC ON)
|
|
Shutter
|
1/30s ~ 1/10000s
|
|
DNR
|
2D & 3D DNR
|
|
White Balance
|
Auto, Indoor, Outdoor, One Push, Manual, VAR
|
|
Backlight Compensation
|
Support
|
|
WDR
|
OFF/ Dynamic level adjustment
|
|
Video Adjustment
|
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
|
|
SNR
|
>55dB
|
|

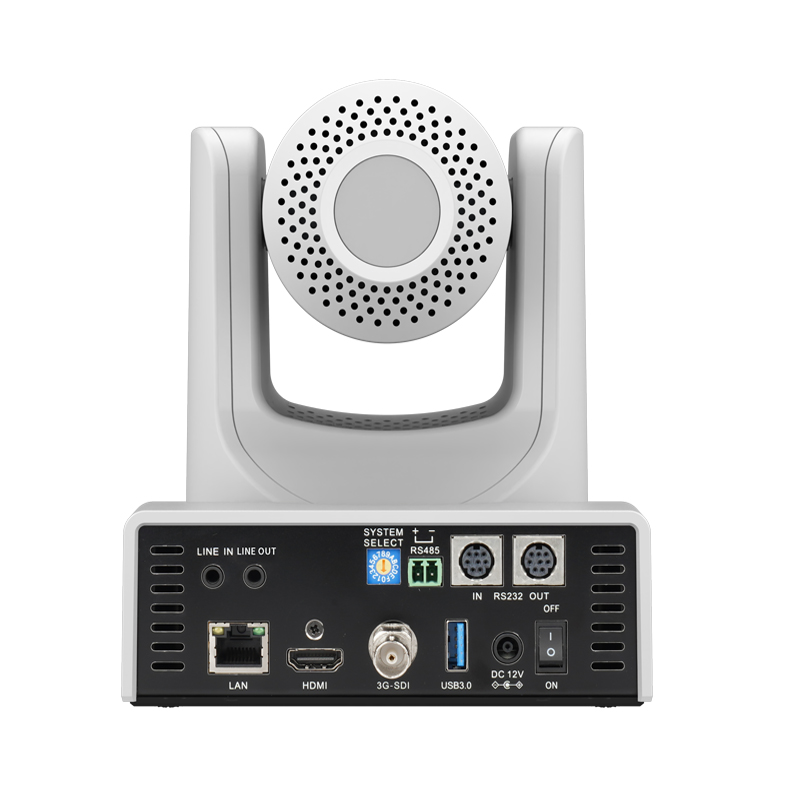

Input/Output Interface
|
|
Interfaces
|
USB 3.0, 3G-SDI, HDMI, LAN, Audio-IN/OUT, RS232, RS485; NDI
|
|
Video Output Interfaces
|
USB3.0, 3G-SDI, HDMI, LAN
|
|
Network Interface
|
RJ45: 10M / 100M adaptive Ethernet port
|
|
Audio Interface
|
1 x LINE IN: 3.5mm Jack
1 x LINE OUT: 3.5mm Jack
|
|
USB Interface
|
1 x USB3.0
|
|
Control Interface
|
1 x RS485: 2pin phoenix port, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P;
1 x RS232 IN: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA / Pelco-D / Pelco-P;
1 x RS232 OUT: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA only
|
|
Power Interface
|
JEITA type(DC IN 12V)
|
|
Audio
|
|
Microphone Array
|
Built-in dual microphones, 100Hz to 16KHz frequency response.
|
|
Network Specification
|
|
Video Compression Format
|
H.264
|
|
Image Stream
|
First Stream, Second Stream
|
|
First Stream Resolution
|
1920×1080, 1280×720, 1024×576 etc.
|
|
Second Stream Resolution
|
1280×720,1024×576,720×576 etc.
|
|
Video Bit Rate
|
32kbps~20480kbps
|
|
Bit Rate Control
|
VBR, CBR
|
|
Frame Rate
|
1fps ~ 60fps
|
|
Audio Compression
|
AAC
|
|
Audio Bit Rate
|
96Kbps，128Kbps，256Kbps
|
|
Protocols
|
FULL NDI, NDI|HX2, TCP/IP, HTTP, RTSP, RTMP, RTMP(s), Onvif, DHCP, Multicast, ,SRT,GB/T28181 etc.
|
|
USB Specification
|
|
Support operating system
|
Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
|
|
Color space / compression
|
YUY2 / H.264 / MJPEG
|
|
Video format
|
Support a variety of different frame rates and resolution video formats, up to 1080p60 YUY2 output
|
|
USB Audio
|
32K Sampling Rate，Support UAC2.0
|
|
USB video communication protocol
|
UVC 1.1 and 1.5
|
|
UVC PTZ control
|
Support
|
|
PTZ Specification
|
|
Pan/Tilt Rotation
|
±170°, -30°～+90°
|
|
Pan Speed
|
1.7° ~ 100° /s
|
|
Tilt Speed
|
1.7° ~ 69.9° /s
|
|
Image Flip
|
Support
|
|
Image Freeze
|
Support
|
|
Preset Number
|
255 presets (10 presets by remote controller)
|
|
Other Specification
|
|
Input Voltage
|
DC 12V /PoE+ (802.3at)
|
|
Input Current
|
1.5A (Max.)
|
|
Operating Temperature
|
0° C ~ 40° C
|
|
Storage Temperature
|
-40° C ~ 60° C
|
|
Power Consumption
|
15W (Max.)
|
|
Net Weight
|
1.5kg
|
|
Dimension
|
142mm (W) x 169mm (D) x 175mm (H)
|
|
Accessory
|
|
Package
|
Power supply, USB3.0 cable, Remote controller, User manual
|
|
Optional Accessories
|
Ceiling / Wall Mount (Extra Cost)
|
