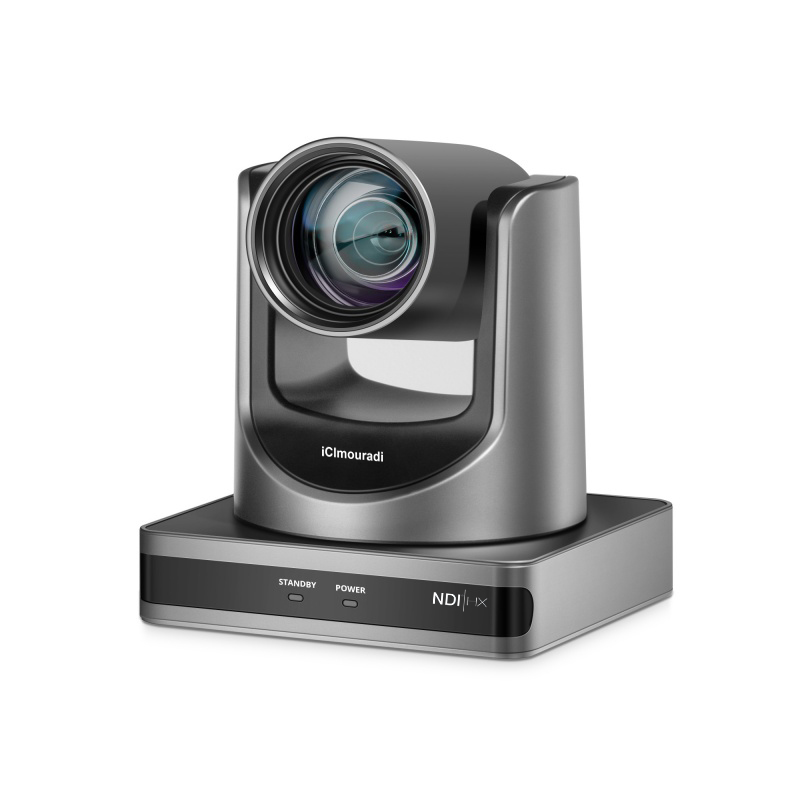

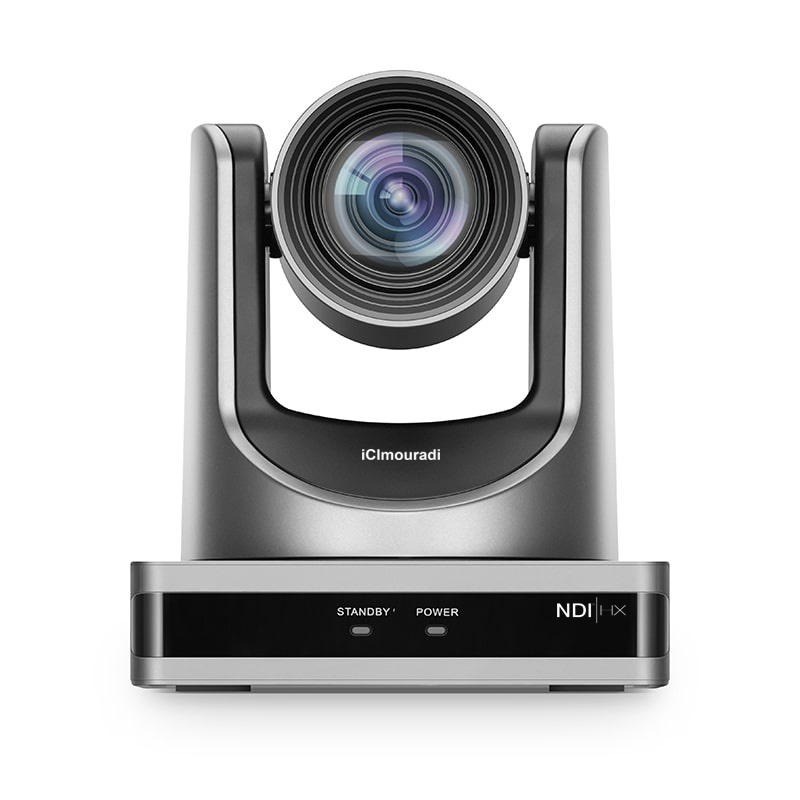

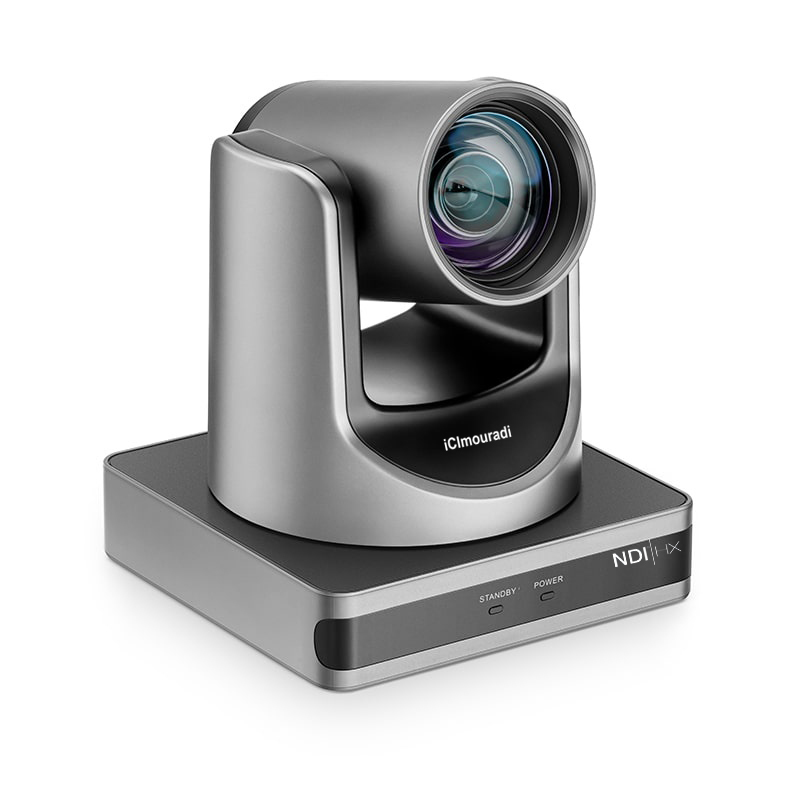

UVC12XU3-NDI PTZ Camera is suitable for teleconference, Corporate AV, Live streaming, distance learning, House of worship, Video production.
|
Model |
UVC12XU3-NDI |
UVC20XU3-NDI |
|
Camera Parameter |
||
|
Sensor |
1/2.8 inch high quality HD CMOS sensor |
|
|
Effective Pixels |
16: 9, 2.07 megapixel |
|
|
Signal system |
1080P60, 1080P50, 1080P30, 1080P35, 720P60, 720P50 |
|
|
Optical Zoom |
12X f3.5mm ~ 42.3mm |
20X F=4.7mm ~ 94mm |
|
View Angle |
72.5°~ 6.9° |
61.1°~ 3.5° |
|
AV |
F1.8 ~ F2.8 |
F1.6 ~ F3.6 |
|
Digital Zoom |
16X |
|
|
Minimum Illumination |
0.5Lux (F1.8, AGC ON) |
|
|
DNR |
2D & 3D DNR |
|
|
White Balance |
Automatic, indoor, outdoor, one button, manual, color changing temperature |
|
|
Focus |
Auto/Manual/One push focus |
|
|
Aperture/Electronic Shutter |
Auto/Manual |
|
|
BLC |
ON/OFF |
|
|
WDR |
OFF/ Dynamic level adjustment |
|
|
Video Adjustment |
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
|
|
SNR |
>55dB |
|
|
Input/Output Interface |
||
|

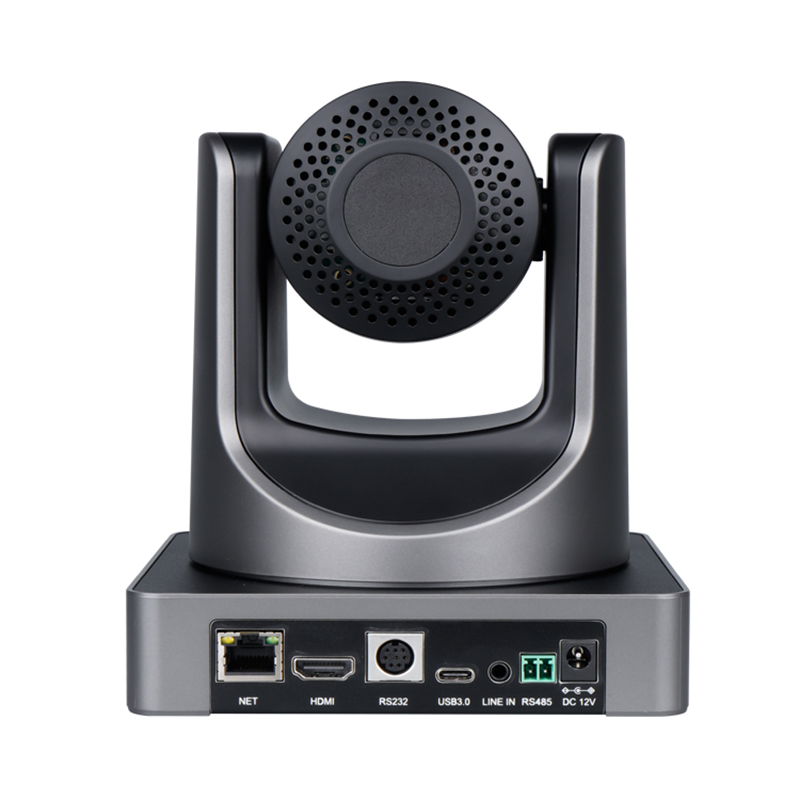

Interfaces |
USB 3.0, type-C, HDMI, LAN(NDI), RS232, RS485 |
|
|
Video Output Interfaces |
HDMI, LAN, USB3.0 |
|
|
Image Stream |
Double stream output |
|
|
Video Compression Format |
H.264/MJEPG |
|
|
Control Protocol |
VISCA/Pelco-D/Pelco-P; Baud Rate:115200/9600/4800/2400bps |
|
|
Audio Input Interface |
Line In, 3.5mm audio interface |
|
|
Network Interface |
RJ45：10M / 100M adaptive Ethernet port |
|
|
Network Protocol |
RTMPS, RTSP, RTMP, ONVIF, GB/T28181, Network VISCA Control Protocol, Support remote upgrade, reboot and reset. |
|
|
Control Interface |
RS232, RS485 |
|
|
Power Adapter |
Input: AC110V-AC220V; Output: DC12V/1.5A |
|
|
Input voltage |
DC 12V/DC 5V/PoE(802.3af) |
|
|
Input current |
12V 1.0A(Max)/5V 1.5A(Max) |
|
|
Power Consumption |
12W(Maximum) |
|
|
USB Features |
||
|
Support operating system |
Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android |
|
|
Color space / compression |
YUY2 / H.264 / MJPEG |
|
|
Video format |
YUY2 (Isochronous mode): maximum 1080P@60fps H.264 AVC: maximum 1080P@60fps H.264 SVC: maximum 1080P@60fps MJPEG: maximum 1080P@60fps |
|
|
USB Audio |
Support |
|
|
USB video communication protocol |
UVC 1.1~1.5 |
|
|
UVC PTZ control |
Support |
|
|
IP Features |
||
|
Video coding standard |
H.264/MJEPG |
|
|
Video stream |
First code stream, Second code stream |
|
|
First bitstream resolution |
1920×1080,1280×720,1024×576,960×540,640×480,640×360 |
|
|
Second bitstream resolution |
1280×720,1024×576,720×576(50Hz Support), 720×480(60Hz Support), 720×408, 640×360, 480×270, 320×240, 320×180 |
|
|
Video bit rate |
32Kbps ~ 102400Kbps |
|
|
Rate control |
Variable bit rate, Fixed bit rate |
|
|
Frame rate |
50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps |
|
|
Audio compression standard |
AAC |
|
|
Audio bit rate |
96Kbps, 128Kbps, 256Kbps |
|
|
Protocal |
TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc |
|
|
AI Feature |
AI Tracking, Auto Framing |
|
|
PTZ Parameter |
||
|
Pan/Tilt Rotation |
±170°, -30°~+90° |
|
|
Horizontal rotation speed range |
2.7°~ 35.7°/s |
|
|
Vertical rotation speed range |
2.7°~ 31.5°/s |
|
|
Flip horizontally and vertically |
Support |
|
|
Image freeze |
Support |
|
|
Preset Number |
255 presets (10 presets by remote controller) |
|
|
Other Parameter |
||
|
Stored Temperature |
-10℃~+60℃ |
|
|
Stored Humidity |
20%~95% |
|
|
Working Temperature |
-10℃~+50℃ |
|
|
Working Humidity |
20%~80% |
|
|
Dimension |
150mm×150mm×167.5mm |
|
|
Weight (around) |
1.4KG |
|
|
Accessory |
||
|
Package |
Power supply, USB3.0 connection cable, Remote controller, User manual |
|
|
Optional Accessories |
Ceiling / Wall Mount (Extra Cost) |
|
