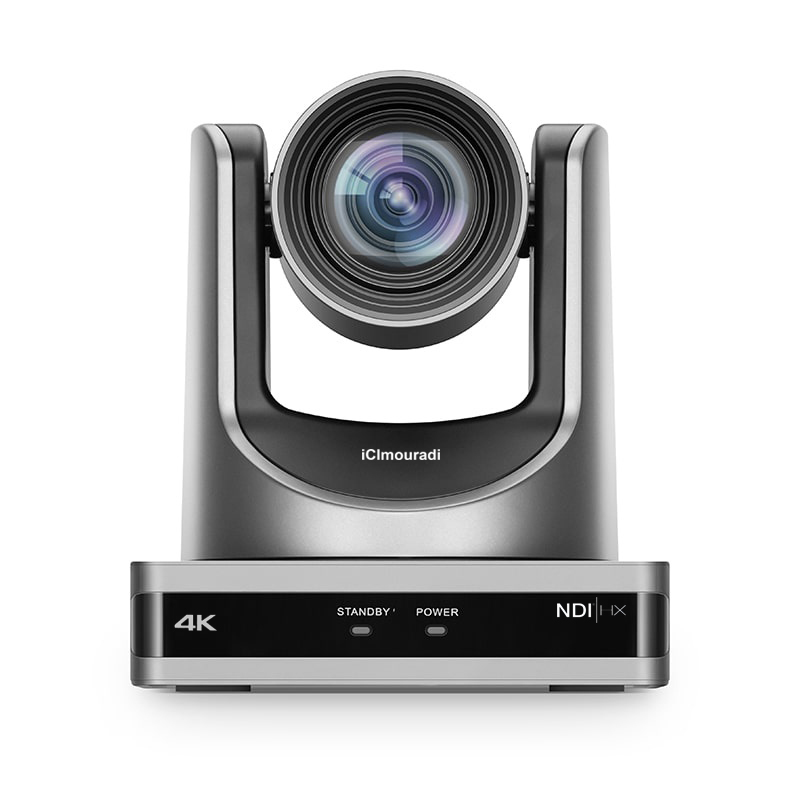

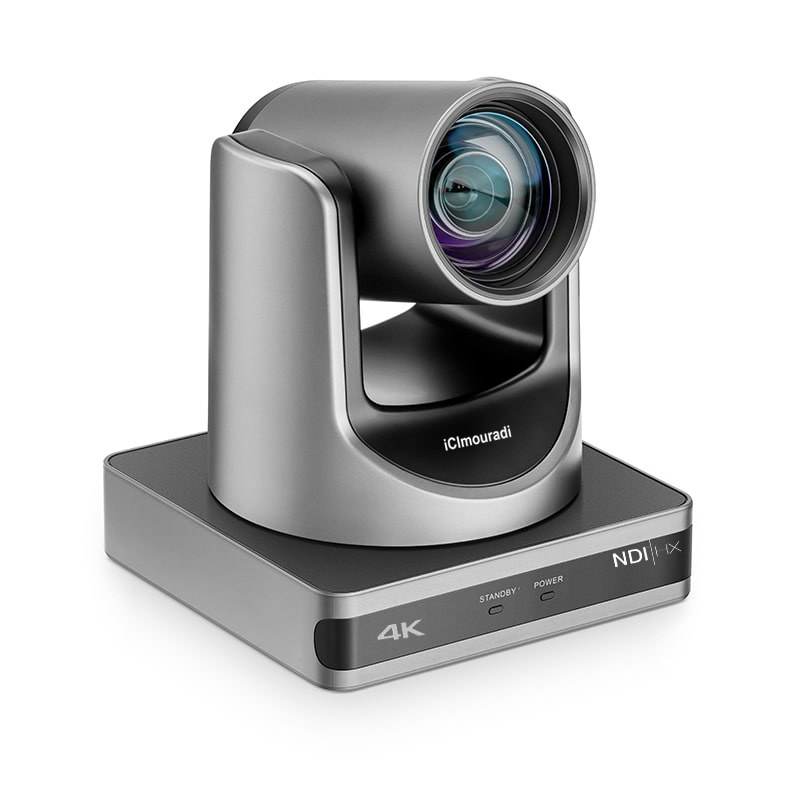

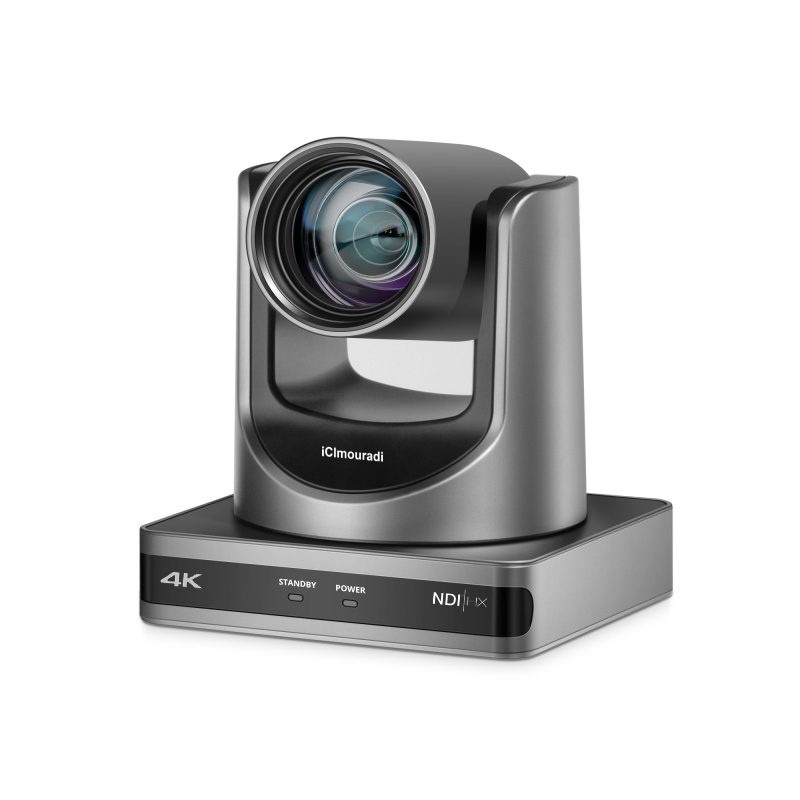

UVCU3-4K-NDI

The UVCU3-4K-NDI is 4K PTZ Camera with NDI®|HX2 for live streaming and unified Communications, professional teleconferencing, online education, broadcast, church…

  • NDI®|HX2: Ultra-Low Latency, Low Bandwidth IP Fast Video Transmission
  • True 4K UHD: Equipped with 1/1.8 inch Sony sensor, 8.51MP, 3840×2160 @30fps resolution
  • Smart AI-Powered: Auto Framing, Auto Tracking, Gesture Control (Hand Control)
  • Flexible Zoom & Coverage: 12X/20X Optical Zoom with 16x digital zoom, suitable for middle and large meeting rooms & boardrooms, auditorium.
  • Multiple Outputs: Simultaneous video & audio via USB 3.0, HDMI, LAN, and NDI
  • Exceptional Low-Light Performance: Delivers clear image even in dim environments
  • PoE Supported: Simplified cabling and installation
Ask for quote

Specifications

Model UVC12XU3-4K-NDI UVC20XU3-4K-NDI
Camera Specification
Sensor 1/2.5 inches, CMOS, Effective Pixels: 8.51MP 1/2.8 inches, CMOS, Effective Pixels: 8.42MP
Lens 12X, f4.4mm~52.8mm, F1.8~F2.6 20X, f3.47mm ~41.65mm, F1.84~F3.72
Horizontal FOV 71°~ 8.2° 60°~ 3.5°
Vertical FOV 42.7°~ 4.5° 35.7°~ 2.0°
Signal System 4KP30, 4KP25, 1080P30, 1080P25
Digital Zoom 16X
POE Support
AI Feature AI Tracking, Gesture Control, Auto Framing
Scanning Mode Progressive
Digital Zoom 16X
Minimum Illumination 0.5Lux (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
DNR 2D & 3D DNR
White Balance Auto, Indoor, Outdoor, One Push, Manual, VAR
Backlight Compensation Support
WDR OFF/ Dynamic level adjustment
Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR >55dB
Input/Output Interface

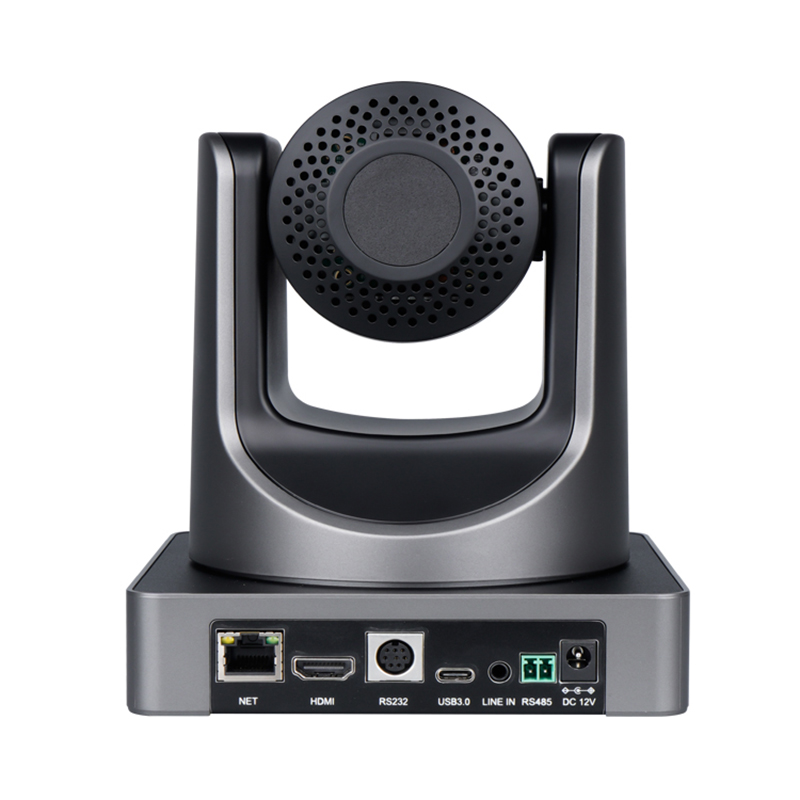

Interfaces USB 3.0 (type-C), HDMI, LAN, RS232, RS485; NDI
Video Output Interfaces HDMI, LAN, USB3.0
Network Interface RJ45：10M / 100M adaptive Ethernet port
Audio Input Interface Line In, 3.5mm audio interface
Control Interface 1 x RS485 IN(Optional): 2pin phoenix port, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P

1 x RS232 IN: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA / Pelco-D / Pelco-P
Power Interface JEITA type（DC IN 12V）
Network Specification
Video Compression Format H.264/MJEPG
Image Stream First Stream, Second Stream
First Stream Resolution 3840×2160, 1920×1080, 1280×720 etc.
Second Stream Resolution 1920×1080, 1280×720, 1024×576 etc
Video Bit Rate 32kbps~20480kbps
Bit Rate Control VBR, CBR
Frame Rate 50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps
Audio Compression AAC
Audio Bit Rate 96Kbps, 128Kbps, 256Kbps
Protocols TC P / IP, HTTP, RTSP, RTMP / RTMPS, Onvif, DHCP, SRT, GB/T 28181, Multicast, etc.
USB Specification
Support operating system Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Color space / compression YUY2 / MJPEG/ H.264/ H.265
Video format YUY2 (Isochronous mode): maximum 1440P@30fps

MJPEG: maximum 2160P@30fps

H.264 AVC: maximum 2160P@30fps

H.264 SVC: maximum 2160P@30fps

H.265 AVC: maximum 2160P@30fps
USB Video Support
USB video communication protocol UVC 1.1 and 1.5
UVC PTZ control Support
PTZ Specification
Pan/Tilt Rotation ±170°, -30°～+90°
Horizontal rotation speed range 2.7° ~ 35.7°/s
Vertical rotation speed range 2.7° ~ 31.5°/s
Image Flip Support
Preset Number 255 presets (10 presets by remote controller)
Other Specification
Input Voltage DC 12V / PoE（802.3af）
Input Current 12V 1.0A (Max.)
Operating Temperature -10° C ~ 40° C
Storage Temperature -40° C ~ 60° C
Power Consumption 2W (Max.)
Net Weight 1.41kg
Dimension 144mm x 144mm x 166.4mm
Accessory
Package Power supply, USB3.0 cable, Remote controller, User manual
Optional Accessories Ceiling / Wall Mount (Extra Cost)
