AK40

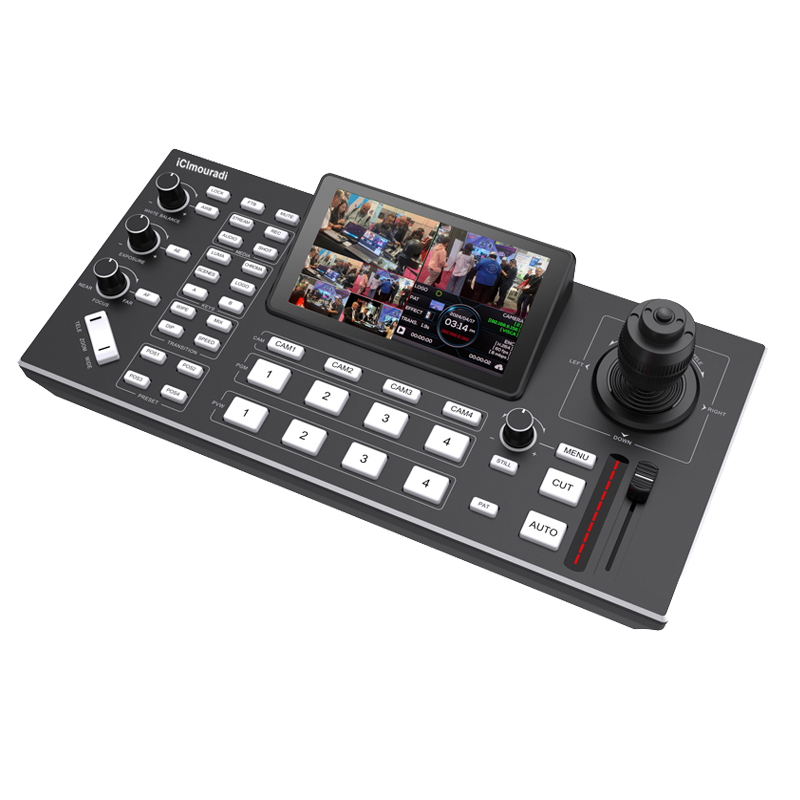

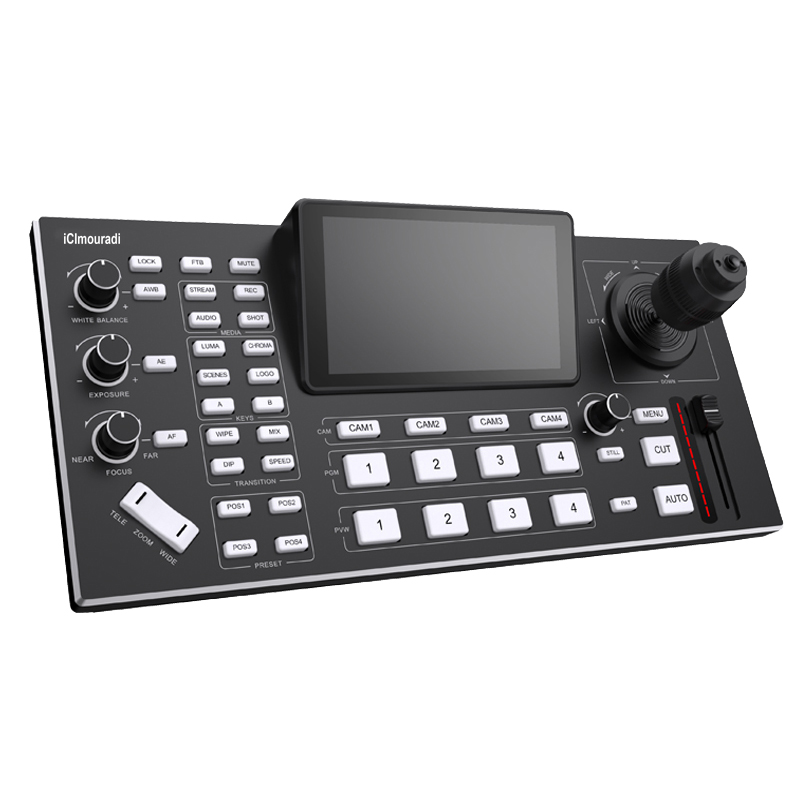

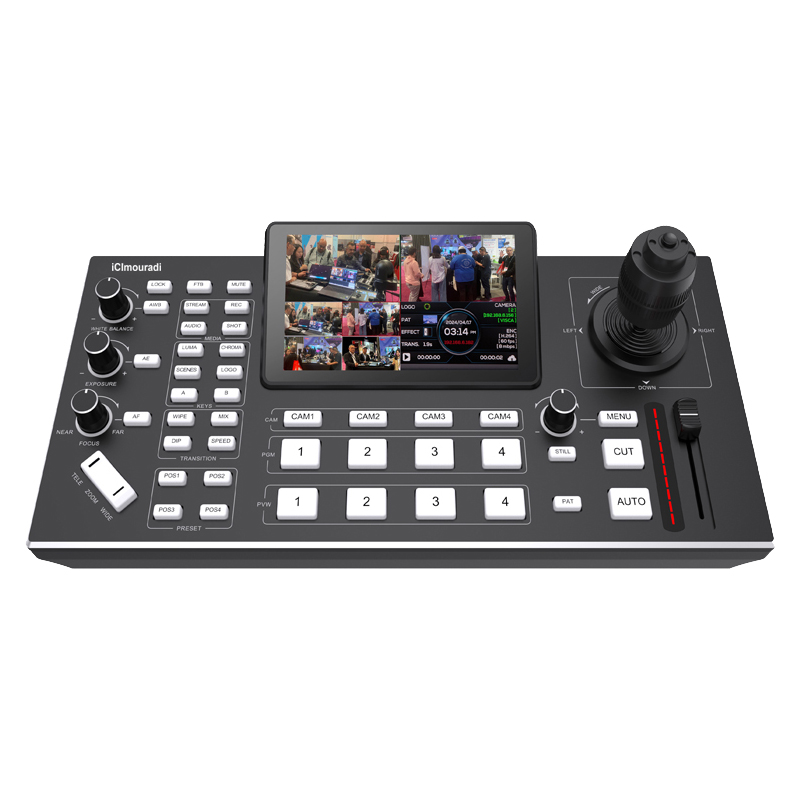

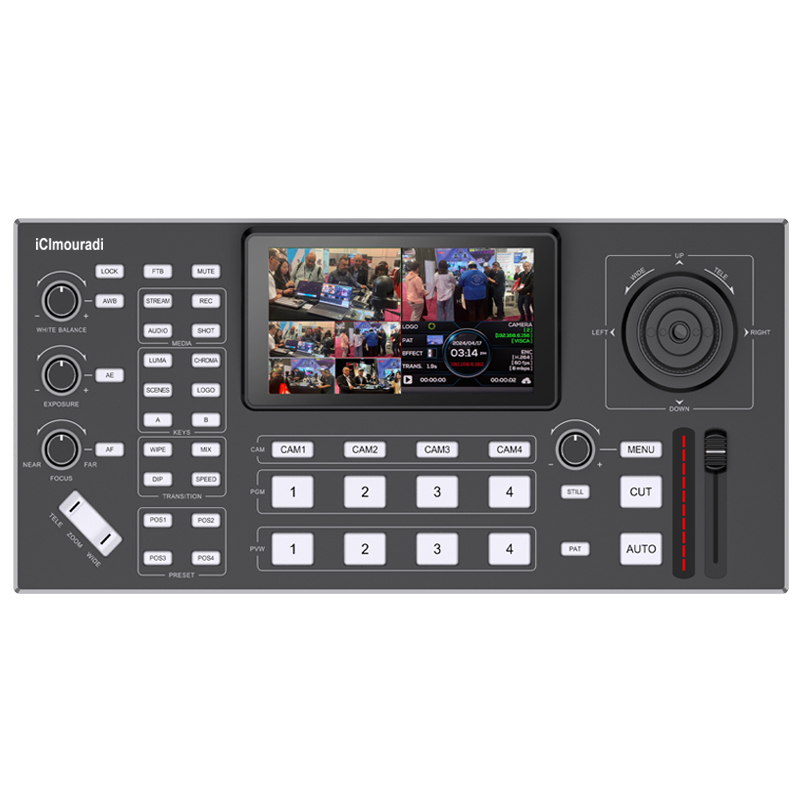

The AK40 Video Switcher is built-in 5.5-inch FHD LCD screen, controlling PTZ cameras very well, suitable for live streaming, broadcasting, video recording.

4 HDMI Channels Video
Built-in 5.5-inch FHD LCD screen
Support PTZ and Image Control, Preview
4 HDMI input video sources, 2 PGM HDMI output
Supports RTMP streaming protocol, live broadcast, video recording

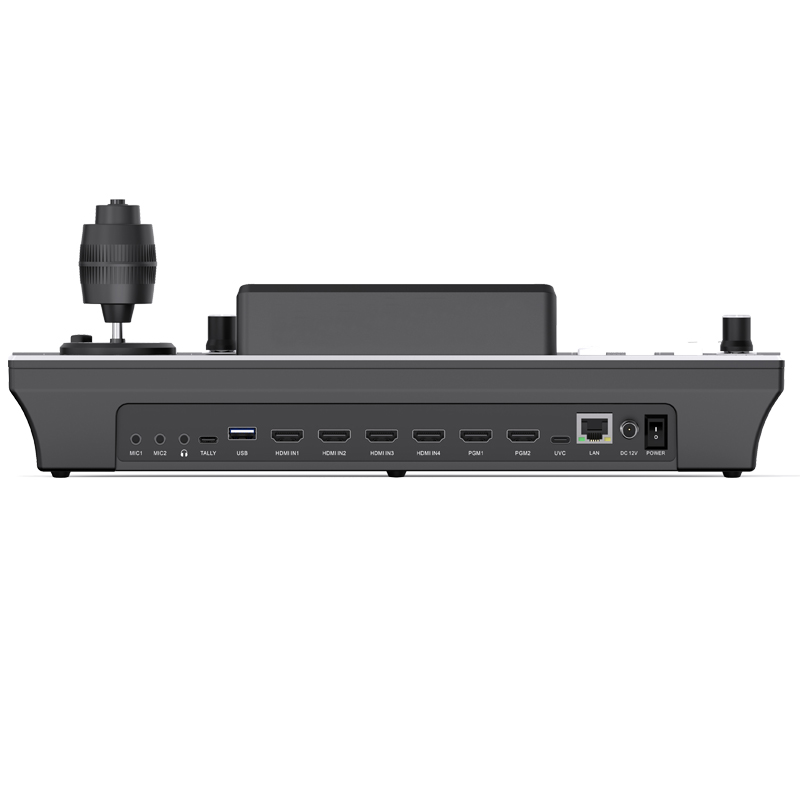

Interfaces: 4 x HDMI, 2 x PGM, USB3.0, 2 x Audio-in, 1 x Audio-out, LAN, USB (disk storage)
Powerful WEB control background
Convenient and fast camera control functions:4D joystick PTZ control; supports VISCA Over IP control protocol
Support multiple PIP and POP layouts and multiple transition functions

Ask for quote

Specifications

Model	AK40
Video Switcher Specification
Video Input Interface	4 channels HDMI
Video Output Interface	2 Channels HDMI outputs simultaneously, supports PGM
	1 Channel USB output, USB supports audio and video output
	1Channel IP output, supports RTMP, RTMPS
	Support UVC and IP simultaneous output
Audio Input Interface	4 sets of HDMI audio inputs
Audio Input Interface	2 channels 3.5mm MIC IN input
Audio output Interface	1 set of 3.5mm headphone monitoring jack
RJ45 Ethernet	RJ45x1, Ethernet supports 10/100/1000 BaseT, which can be used for live streaming, background settings, and software updates
Computer Interface	1xUSB TYPE C for UVC video output
Computer Interface	1xUSB TYPE A; external USB storage (FAT32, NTFS, exFAT)
Format Specifications
Video Input Format	1080p 60/59.94/50/30/29.97/25/24/23.98
	1080 i50/1080 i60
	720p 60/59.94/50/30/29.97/25/24/23.98
	576i/480i/576p/480p
Video Output Format	1080p 60/50/30/25/24
Video Output Format	1080i50/1080i60
HDMI Color Space	RGB/YUV
USB Acquisition Output	Max: 1080P60，support USB audio output
Local File Playback	Video file format: MP4
Local File Playback	Image file format: PNG，JPG，BMP
File Recording Format	MP4
Storage Media	Support U disk storage（FAT32, NTFS, exFAT）
File Recording Resolution	1920×1080
File Real-time Playback	Support
Specifications
Video System	FULL HD
Monitor Screen	5 inches
Monitor Minimum Resolution Requirements	1920×1080 pixels
LOGO	1 set
Clock Display	Support
Operating Mode	Horizontal screen(16:9)
Tally	Support (Tally control box needs to be purchased separately)
Stunt Switch	CUT & AUTO
Special Effects	36 kinds of stunts, the switching duration can be set
PIP Model	Support（8 channels PIP and POP model）
Layers	Background, A, B, LOGO multiple layers
Layers	Layer editing support: size, position, graphics mask, area mask
Keying	Chroma key Luma Key
Language Mode	Simplified Chinese, English
Audio
Mixer	4-channel audio virtual mixer with switch and mode settings for each channel
Analog Audio Input	2 channels of 3.5mm MIC IN input, gain range（-60-24db)
Analog Input Delay	0-500ms
Analog Audio Output	1 Channel unbalanced stereo output line out
Dimension	1 Channel headphone monitoring output
Audio Input Level Range	0dB~60dB
Audio Sample Rate	48kHz
Audio Format	AAC encoding; streaming and recording 2 channels, 16bit, compression bit rate support: 128k (default), 48k, 64k, 96Kbps;
PTZ Control
PTZ Control	VISCA Over IP control protocol
PTZ Control Quantity	4 Channels
PTZ Camera Control Method	4D Joystick
PTZ Aperture Control	Support
PTZ Focus Control	Support, manual/auto
PTZ Exposure Control	Support, manual/auto
PTZ Exposure Mode	Red gain value, blue gain value adjustment
TALLY Instruct	Equipped with the tally control box, the camera can be switched and controlled synchronously with tally lights.
Remote Control	Support mobile phone and WEB web page control
Software Update
Firmware Upgrade	Connect directly to a Windows computer using the Ethernet interface.
Power Supply
Input Voltage	External 12V2A power supply
Input Current	0.8A（Max）
POE	Non support
Rated Power	10W（Max）
General Specifications
Usage Environment	Indoor
Operating Temperature	0℃-40℃
Storage Temperature	-10℃-60 degrees
Color	Black
Dimension	(W)354* (D)165* (H)121mm（Including rocker height）
Weight	2.0kg
