AK60

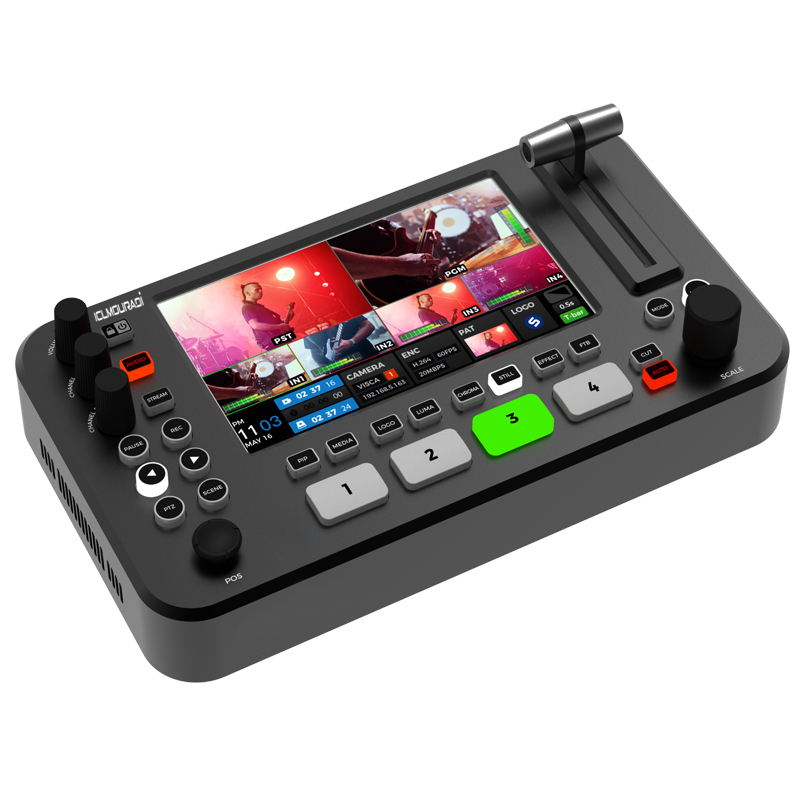

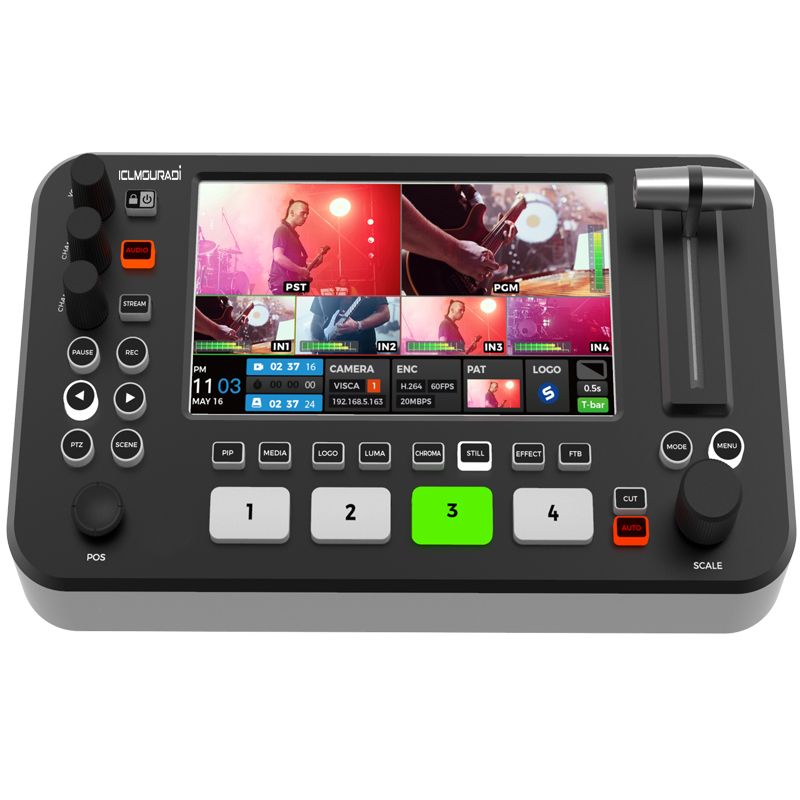

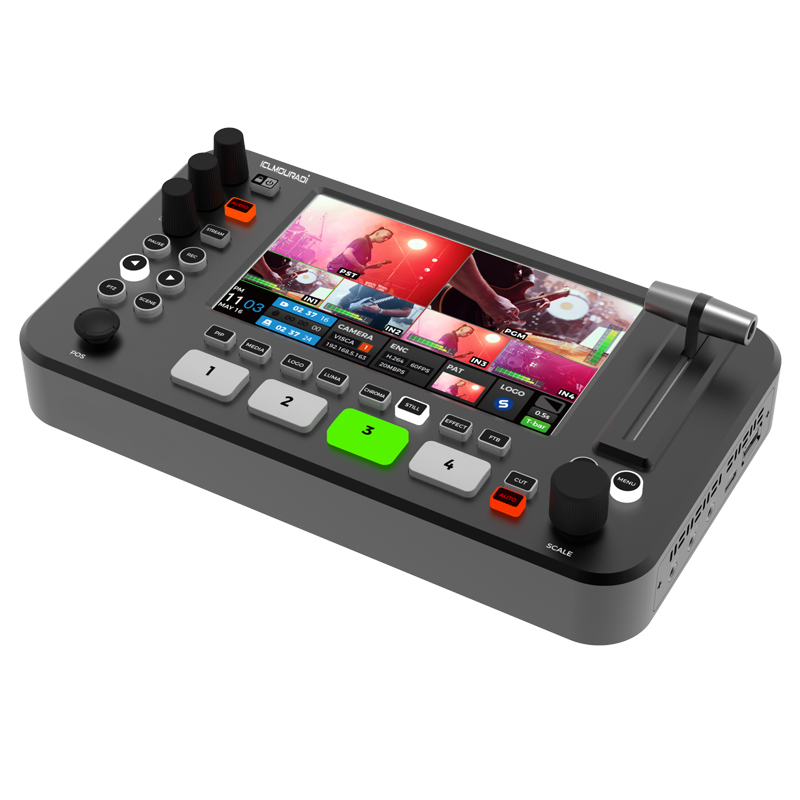

The AK60 Video Mixer Switcher is all-in-one solution for professional multi-camera production and live streaming. It supports seamless switching, multi-PTZ camera control, built-in live web push streaming, and real-time recording. Perfect for live events, professional broadcasting, video conferencing platforms and distance learning centre.

  • Built-in 5.5 inch 1080p monitor for real-time preview
  • Support 4 x HDMI Input for 4 x Cameras
  • PTZ joystick control – manage multiple cameras from one console
  • Load PNG Logo& JPG File Directlyvia USB Flash Disk
  • Direct USB recording to flash drives/HDDs
  • Professional Transition Effects: Includes FADE, DIP, DVE, MIX, and more for smooth
  • Built-in Audio Mixer
  • Support Multi Low Third Switch
  • Web Server Control

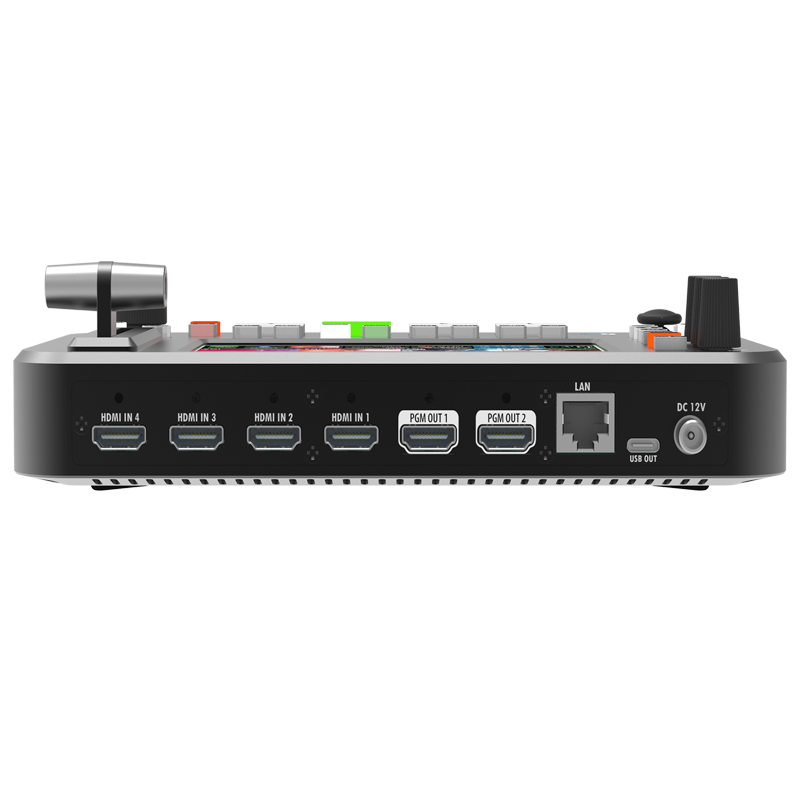

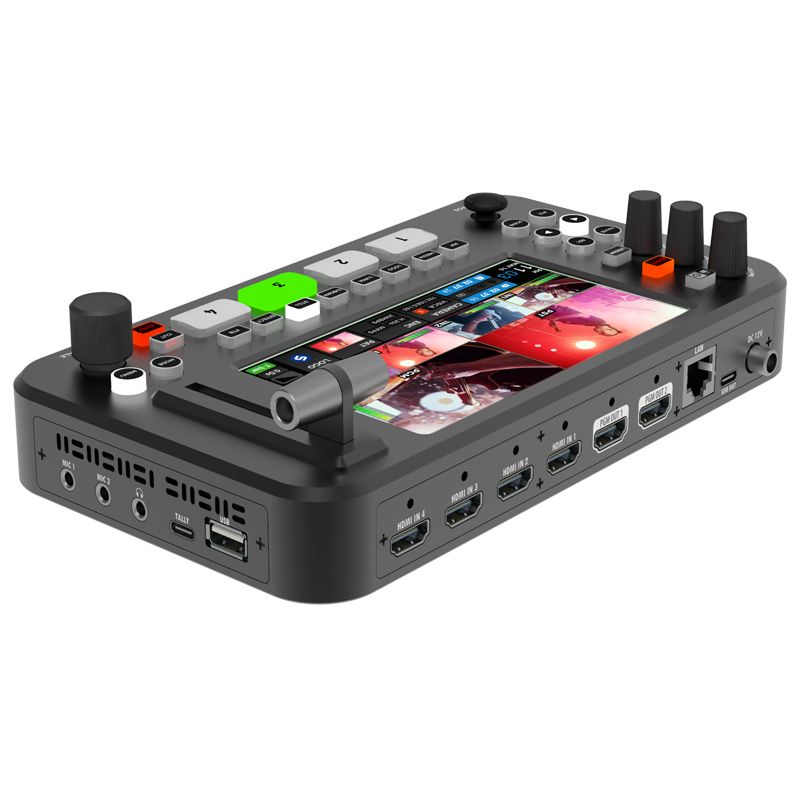

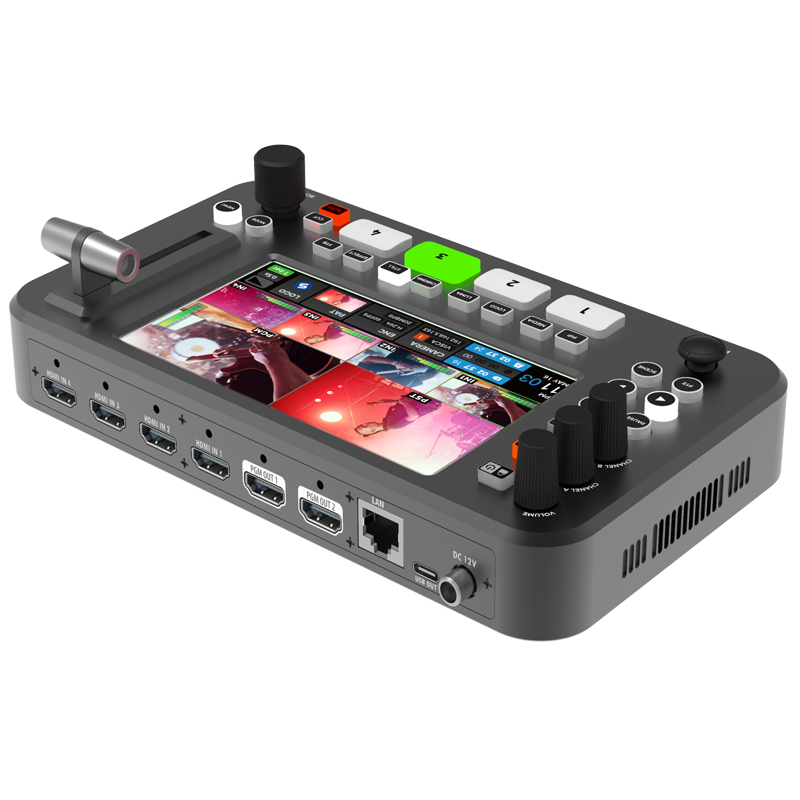

  • Interfaces: 4 x HDMI-IN, 2 x HDMI-OUT, LAN, USB2.0, USB3.0, 2 x Audio-in, 1 x Audio-out
Ask for quote

Specifications













Connector



Input







Output

HDMI 1.3

USB 2.0

HDMI1.3 USB 3.0

USB 2.0

IN

PHONES





LAN

4xHDMI-A

1xUSB TypeA



2xHDMI-A

1xUSB TypeC

1xUSB TypeC

2×3.5mm stereo Jack 1×3.5mm stereo Jack



1xRJ45

HDMI Source Interface

Load Image / Recording



PGM Output

UVC Output Interface Tally Interface

MIC / LINE Stereo Input

Monitoring Output

Lan Port Control Lan Port Stream  PTZ Control



Audio







Communication



Input

resolutions

HDMI

SMPTE VESA

720p@50/60 | 1080i@50 | 1080p@24/30/50/60 1024×768@60 I 1280×768@60 I 1280×800@60

1280×1024@60 I 1360×768@60 I 1366×768@60   1440×900@60 I 1600×1050@60 I 1680×1050@60 1920×1080@23.98/24/25/29.97 /30/50/59.94/60

1080p@24/30/50/60 |1080i@50/60

1080p@24/30/50/60

Output

resolutions

HDMI

USB3.0

SMPTE

Video Streaming



Performance

Video Sampling

Latency

Audio latency

YUV 4:4:4

<3 frame

0-2000ms



Power

Input Voltage

Constant power

12V/1.5A

18W



Environment

Temperature

Humidity

0℃~70℃

10%~85%

Weight

Net Weight

Gross Weight

0.5kg

1.25kg



Dimension

Device Dimension

Package Dimension

220mm x 126mm x 33mm

260mm x 160mm x 120mm
