CVC603+TR10/TR20

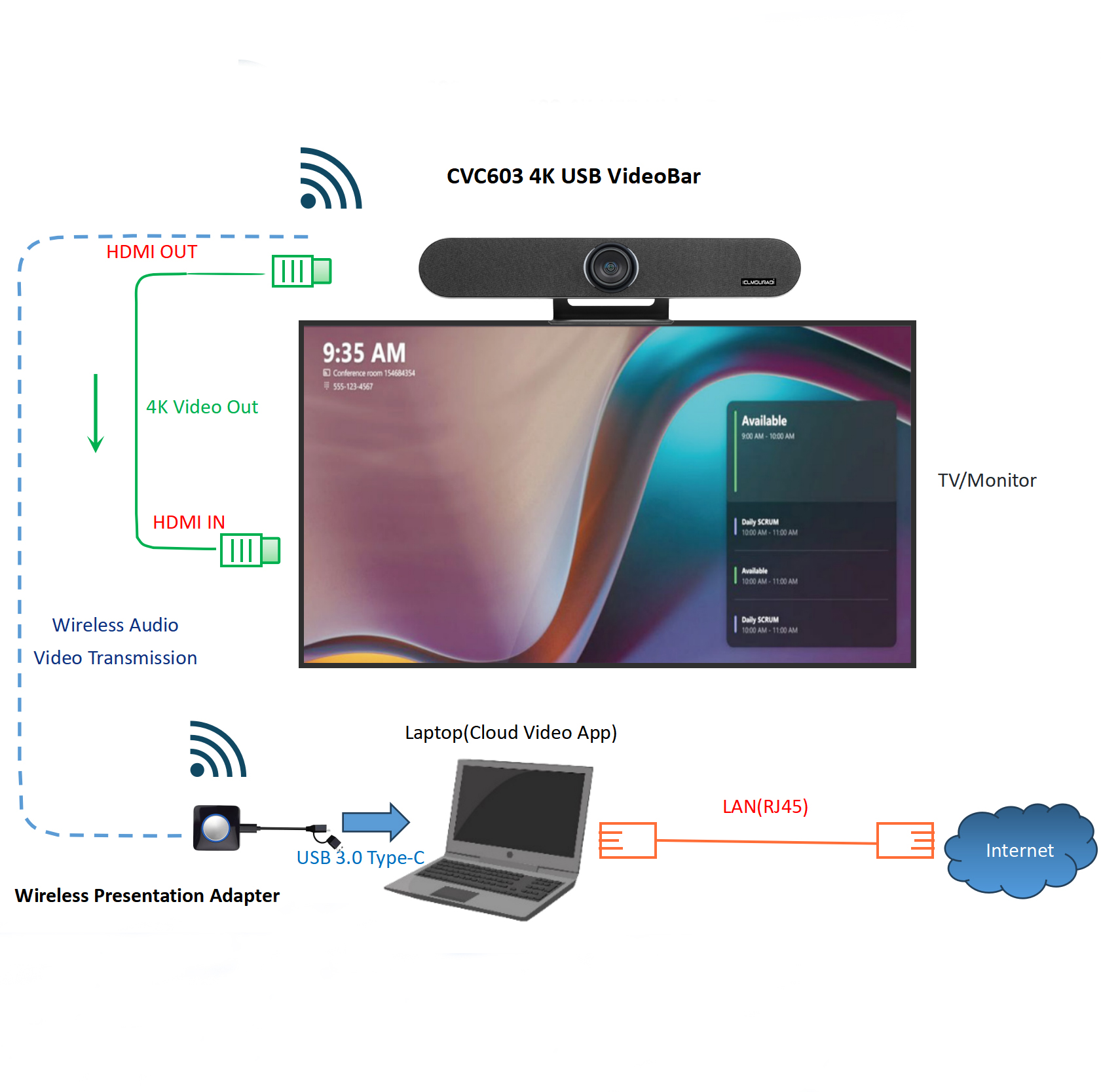

The BYOM Huddle and Middle Room Kit includes CVC603 4K Video Bar and TR20 wireless presentation dongle, designed for huddle rooms and mid-size conference rooms. The all-in-one wireless video conferencing system is perfect for hybrid meetings, corporate presentations, and remote collaboration.

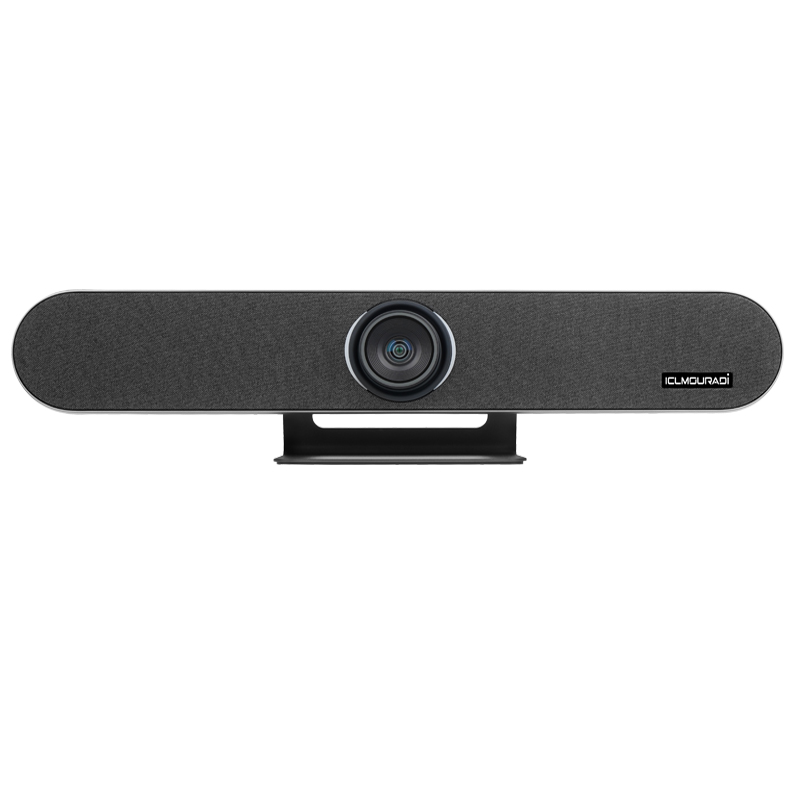

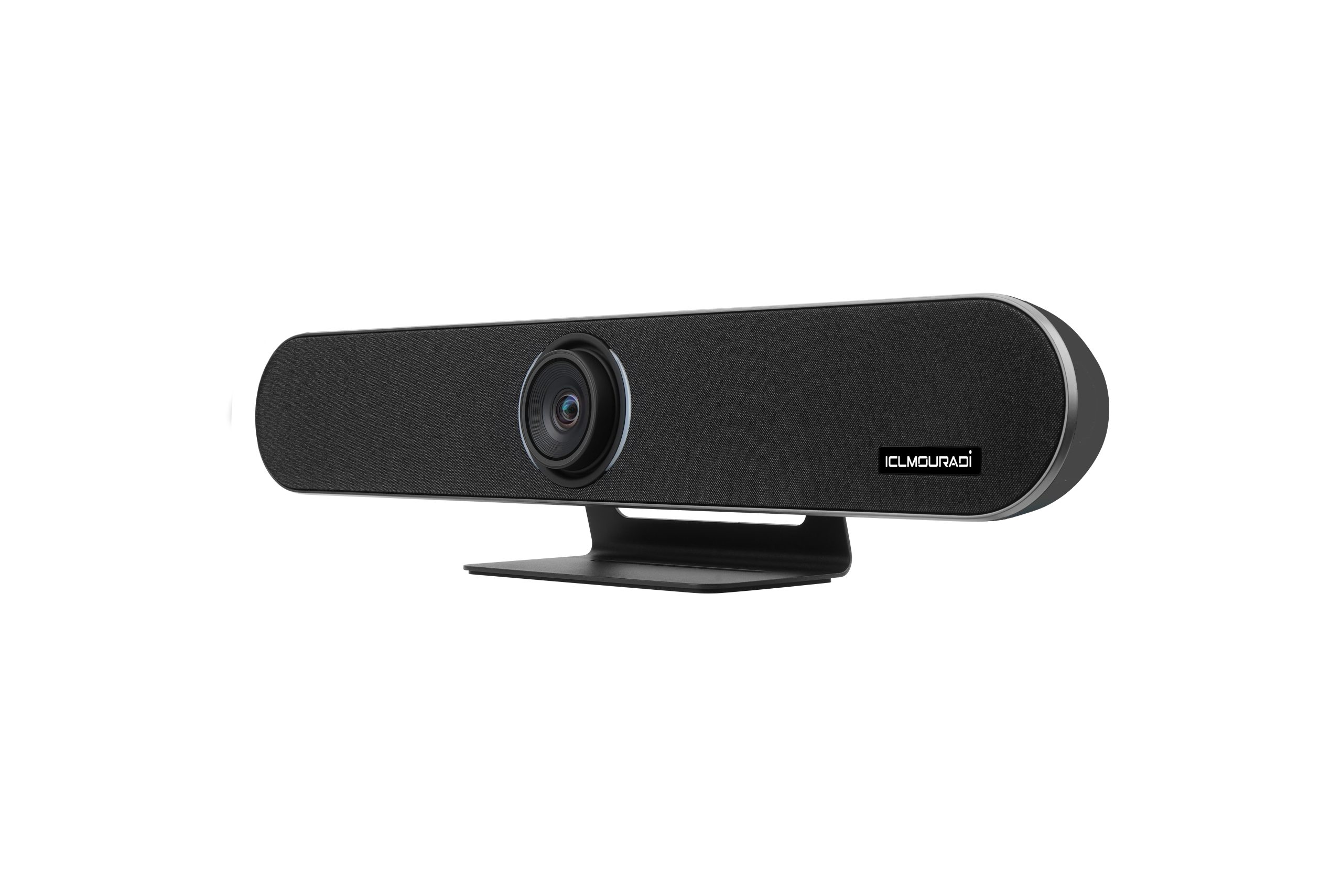

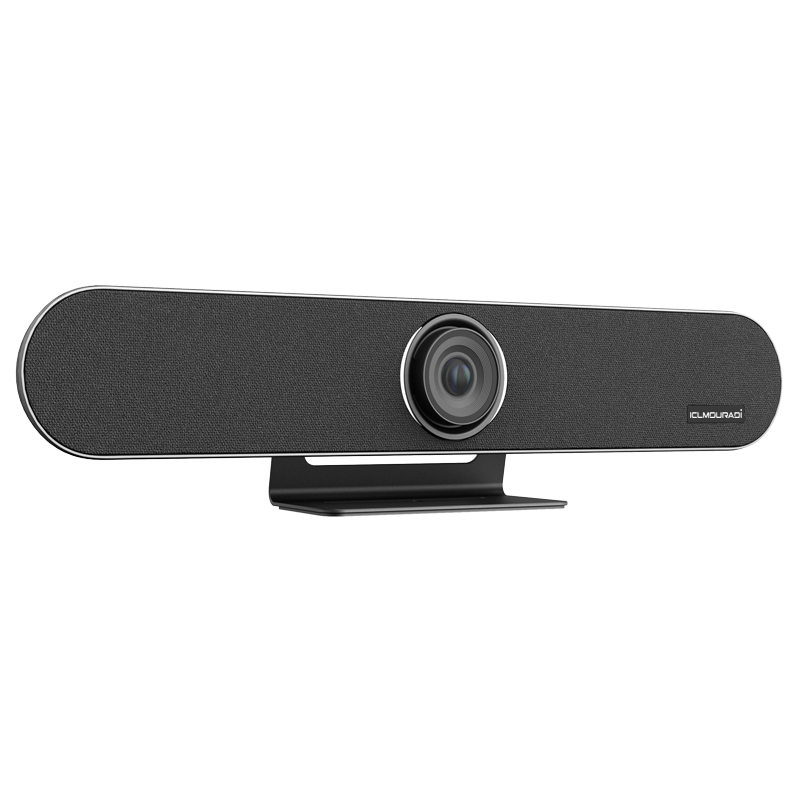

CVC603 Video Bar:
  • Ultra HD Video: 4K 20MP resolution with 120° wide-angle lens and ±15° PTZ
  • Built in 5-microphone array with 6m voice pickup range
  • Built in dual full-range speakers
  • AI-Powered Intelligence: Auto Framing, Voice Tracking, Smart Gallery
  • Support 5pcs Extended MIC
  • Support BYOM/BYOD, wireless screen sharing
TR10/TR20 dongle:
  • 4K UHD Screen Cast
  • Dual-Band Wireless Transmission Transmission: 5G and 2.4G
  • Plug-and-Play: No software installation needed, just plug and present.
  • Universal Compatibility: Works with Windows PCs and Mac devices via USB-A or USB-C.
  • TR10 interface: USB Type A, USB Type C.
  • TR20 Interface: HDMI, USB Type C.
Ask for quote

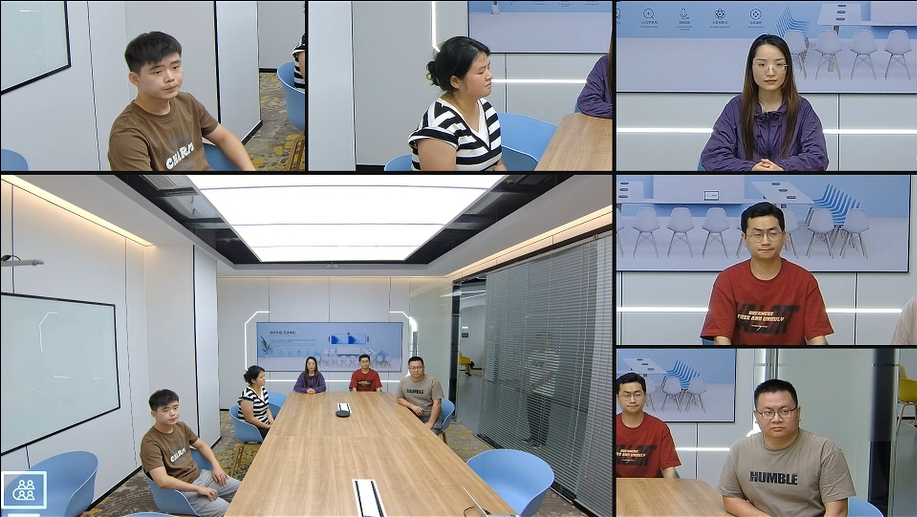

Smart Gallery

CVC603 conference bar can automatically detect the number of participants in the meeting and adjust the layout accordingly.

Support up to 8 screen layouts: 7 close-up views and one panoramic view.

CVC4KBar Pro 4K Video Bar Smart Gallery

Specifications

 CAMERA
Video Resolution 4K@30fps,1080P@30fps,720P@30fps,etc
Sensor 1/1.8 inches,CMOS,effective pixels:20 million
Optical Lens 114°(DFOV),105°(HFOV),8x digital
zoom,horizontalltilt±15
PTZ Mechanical pantilt (MPTZ)+EPTZ
Digital Noise Reduction 2D&3D Digital Noise Reduction
Signal-to-Noise Ratio ≥55dB
BLC Support

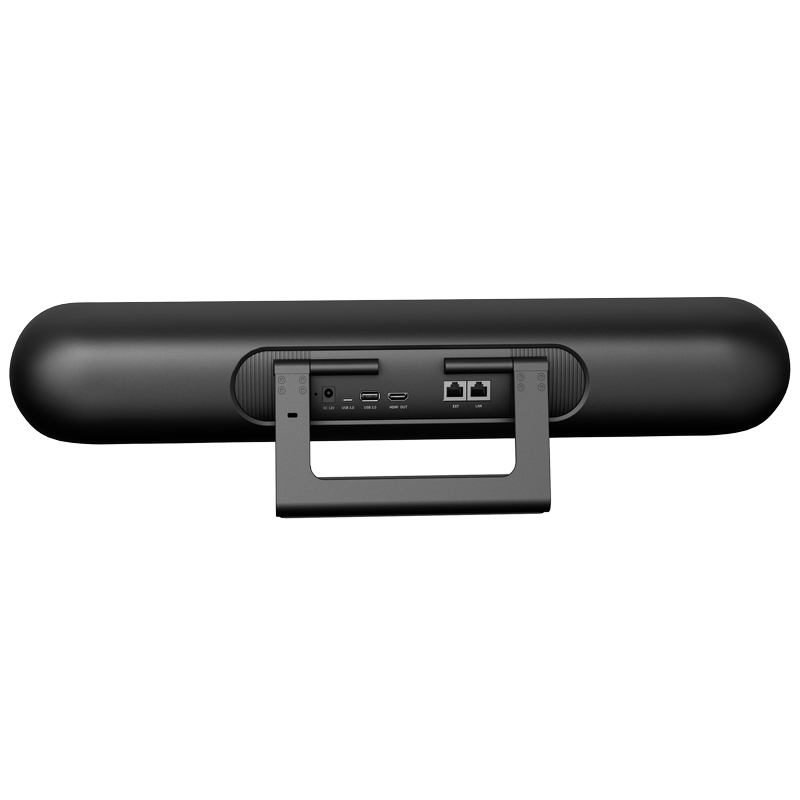

 INPUT AND OUTPUT INTERFACE
USB 3.0 1×USB3.0,Type-C,female connector,
supports audio and video transmission,
supports firmware upgrade
HDMI 1×HDMI,supports local video display
USB 2.0 1×USB2.0,Type-A,female,connect to USB
wired expansion microphone
Network Port 1×RJ45,connect to network port expansion
microphone,support PoE power supply
1×RJ45,10/100M adaptive Ethernet port,
supports network transmission of audio and video
Power Interface 1 power interface
Bluetooth Bluetooth 5.3,supports Bluetooth
connection to mobile phones,laptops and
other devices,and transmits audio
Wifi Wifi 6,supports BYOM wireless transmission
and BYOD wireless screen projection(extra
screen projection device is required)
Remote Control Support remote control
 AUDIO
Full Range Speakers 96dB SPL at 0.5m
Microphone Array Beamfoming microphone,pickup distance 6 meters
Extended MIC Support  (Optional)
 USB FEATURES
Connection Type USB 3.0,backward compatible with USB2.0
Color Space/
Compression		 MJPEG/YUY2
USB Audio 32K sampling rate,support UAC 1.0
USB Video
Communication Protocol		 UC 1.1
UVC PTZ Control Support (ePTZ)
 OTHER
Installation Supports multiple installation options such
as desktop, wall, TV, etc.
Standard Cables USB cable
Security Anti-theft lock jack
 GENERAL SPECIFICATIONS
Power Supply DC 12V,2A(MAX)
Operating Temperature 0℃~40℃
Stored Temperature -40℃~60℃
Dimensions (LxHx D) 600mm*135mm*117mm
Net Weight 2.5 Kg
