B12 & B20

The B12 & B20 is 4K60FPS Box Camera, suitable for Live Streaming, Broadcasting, Telemeeting, distance learning, lecture capture

  • True 4Kp60 Ultra HD: 1/2.8-inch4MP UHD Sony sensor
  • Dual LensOptions:

    B12: 12x optical zoom with 72.8° horizontal FoV

    B20: 20x optical zoom with 61.2° horizontal FoV

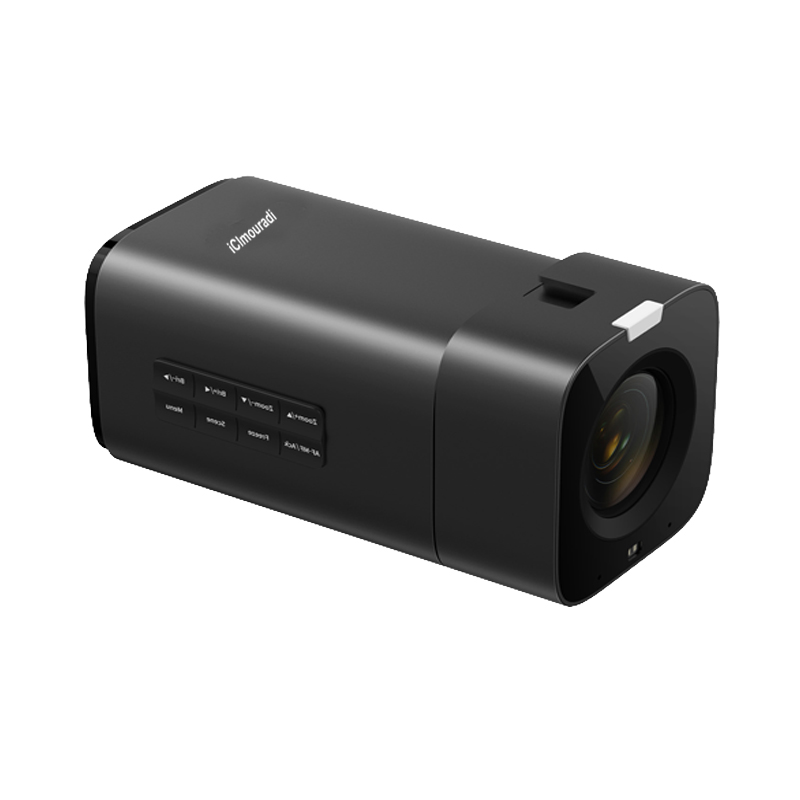

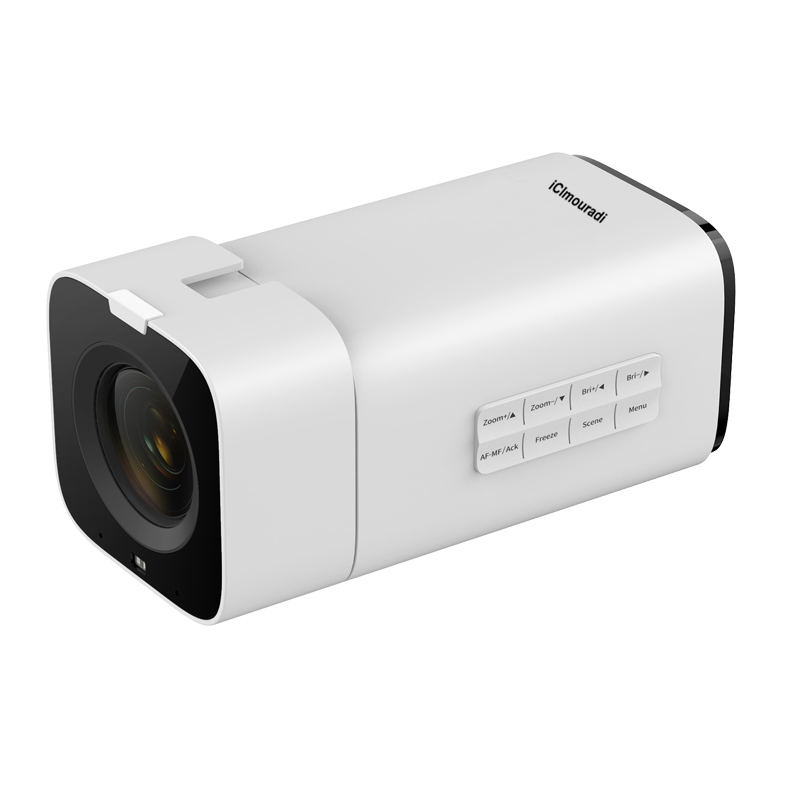

  • Built-in 8-Button Control Panel: Zoom operation, focus operation, brightness adjustment, menu control, image freezing, and mode switching
  • TOF Fast Auto Focus
  • Built-in 360°omnidirectional Microphone: 6-meter pickup range
  • Web-Based Configuration: Convenient control via browser, not need extra software
  • NDI®|HX2 Optional

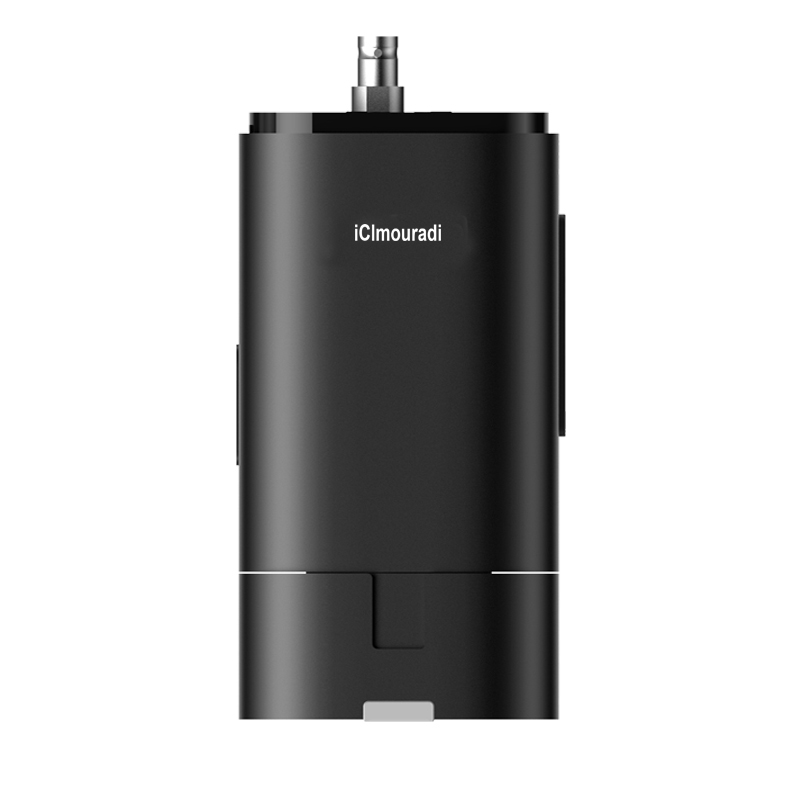

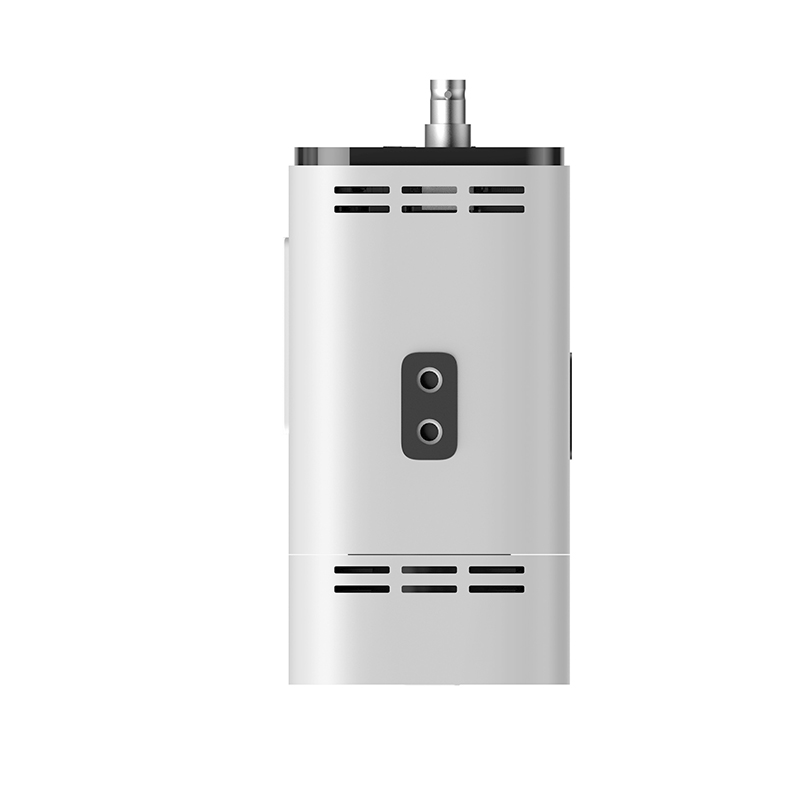

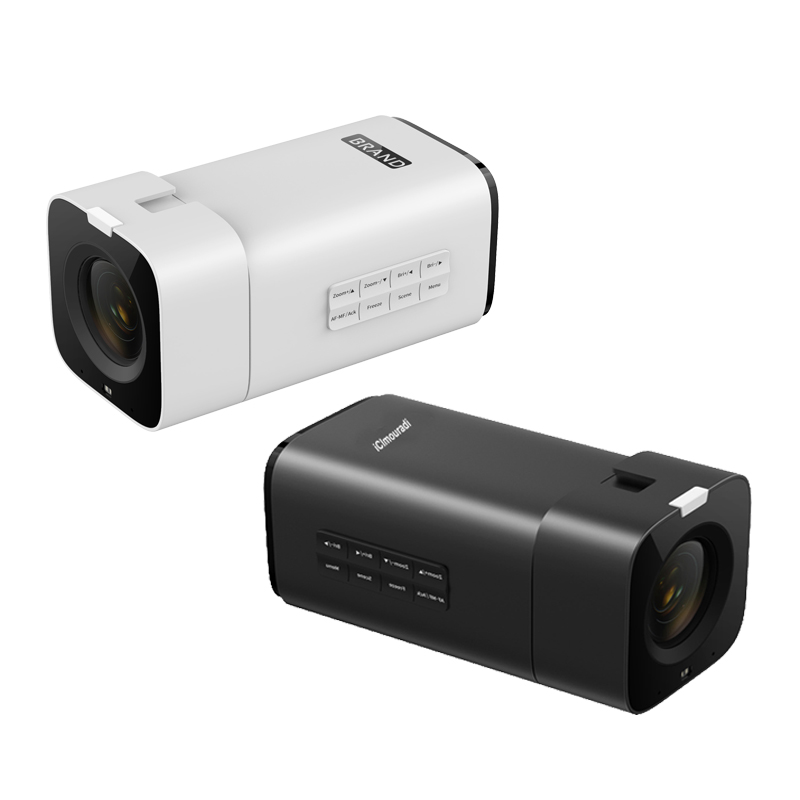

  • Available in Black or White: perfect for telepresence rooms, worship places, collaboration classrooms or lecture halls
Ask for quote

Specifications

Model

B12

B20

Camera Specification

Sensor

1/2.8 inches, CMOS, Effective Pixels: 8.4 Megapixels

Lens

12x Optical Zoom

20x Optical Zoom

Horizontal FOV

72.8° ~ 6.8°

61.2° ~ 3.38°

Vertical FOV

44.1° ~ 3.8°

35.3° ~ 1.90°

Signal System

HDMI: 4KP60, 4KP50, 4KP30, 4KP25, 4KP59.94, 4KP29.97, 1080P60 etc.

3G-SDI: 1080P60, 1080P50, 1080P30, 1080P25, 720P60 etc.

Focus Mode

Auto, One Push, Manual

PoE

Support

Minimum Illumination

0.5Lux (F1.8, AGC ON)

Shutter

1/30s ~ 1/10000s

HDR

Support

Anti-flicker

Support

Image Flip

Support

Image Freeze

Support

DNR

2D & 3D DNR

White Balance

Auto, Indoor, Outdoor, One Push, Manual, VAR

Backlight Compensation

Support

WDR

OFF/ Dynamic level adjustment

Video Adjustment

Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

SNR

>55dB

Device operation

Body Buttons

Quantity: 8;

Features: Zoom operation, focus operation, brightness adjustment, menu control, image freezing, and mode switching

Webpage

Full -Function Webpage

Remote Control

360 ° infrared remote control support

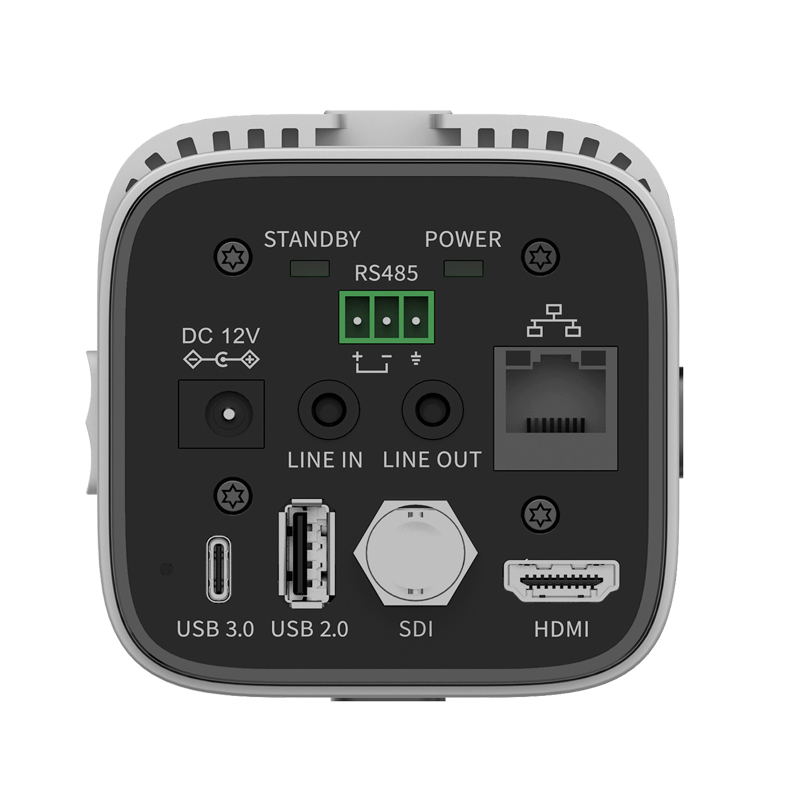

Input/Output Interface

Interfaces

USB 2.0, USB3.0, 3G-SDI, HDMI, LAN, Line-IN/OUT, RS485, Standby

Video Output Interfaces

USB, 3G-SDI, HDMI, LAN

Network Interface

1 x RJ45: 10M/100M/1000M adaptive Ethernet Support: PoE(802.3af)

Audio Interface

1 × Line In, 3.5mm Jack

2 × Microphone input

Audio Output

1 × Line Out, 3.5mm Jack

USB Interface

1 x USB3.0,Type-C

Control Interface

1 x RS485: 2pin phoenix port, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P

Power Interface

DC005-2.0mm type (DC IN 12V)

Network Specification

Video Compression Format

H.265 / H.264 / MJPEG

Image Stream

First Stream, Second Stream

First Stream Resolution

3840×2160, 1920×1080, 1280×720 etc.

Second Stream Resolution

1920×1080, 1280×720, 1024×576 etc.

Video Bit Rate

32kbps~102400kbps

Bit Rate Control

VBR, CBR

Frame Rate

50Hz: 1fps~50fps, 60Hz:1fps~60fps

Audio Compression

AAC, G711A

Sampling Rate

48KHz

Audio Bit Rate

48Kbps, 64Kbps, 96Kbps, 128Kbps

Protocols

NDI®|HX2, SRT, TCP/IP, HTTP, RTSP, RTMP(s), Onvif, DHCP, GB/T 28181, Multicast, etc.

USB Specification

Support operating system

Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android

Color space / compression

H.264 / MJPEG / YUY2

Video format

YUY2: Max.1080P30

H.264 AVC: Max.2160P

H.264 SVC: Max.2160P

MJPEG: Max.2160P

USB Audio

Support

USB Video

Support

USB video communication protocol

UVC 1.1

UVC PTZ control

Support

Other Specification

Input Voltage

DC 12V /PoE (802.3af)

Input Current

1A (Max.)

Operating Temperature

-10° C ~ 40° C

Storage Temperature

-40° C ~ 60° C

Power Consumption

18W (Max.)

Net Weight

1.5kg

Dimension

145mm (W) x 76mm (D) x 78.5mm  (H)
