CVC606

CVC606 video bar integrated 4K dual lens, with 12X Optical Zoom close-up lens and 120° large view angle Panoramic lens, right for middle and large conference room. It support BYOM BYOD Wireless video conference, with intelligent AI Performance – Voice Tracking, Auto Framing, Smart Gallery, Multi-Camera Fusion Directing…

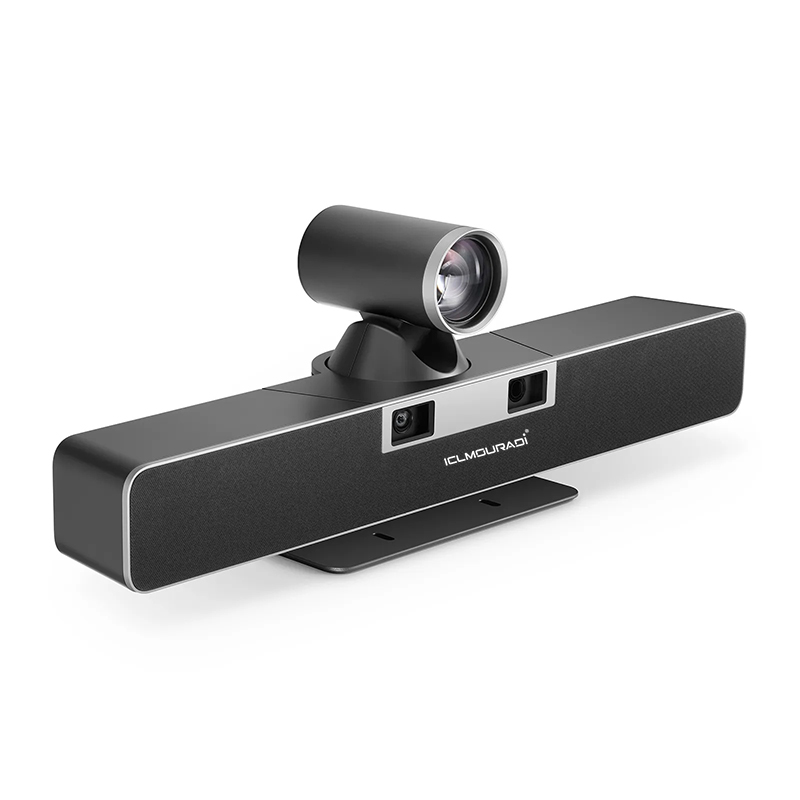

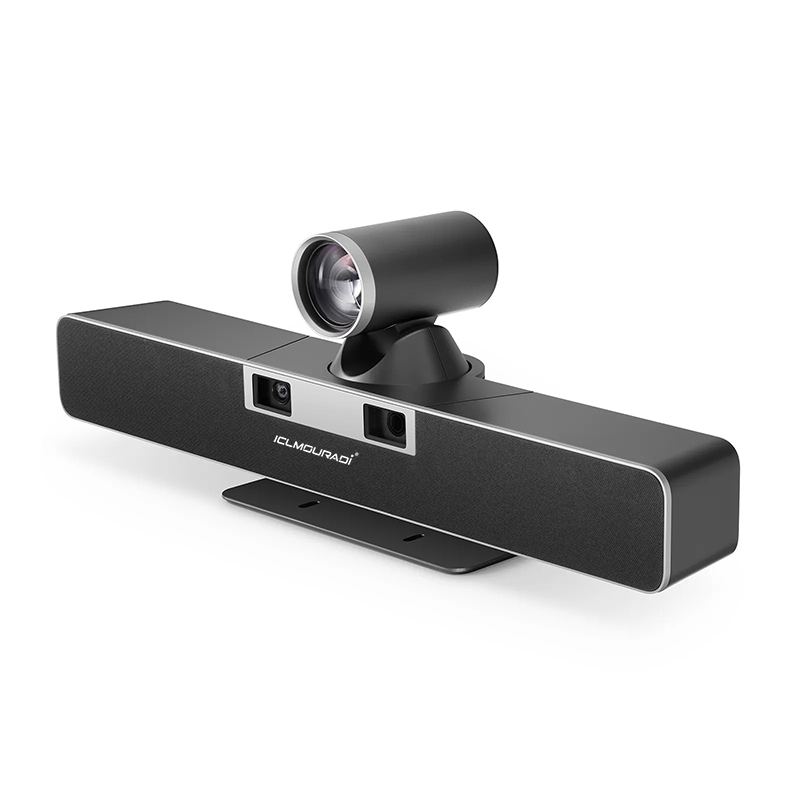

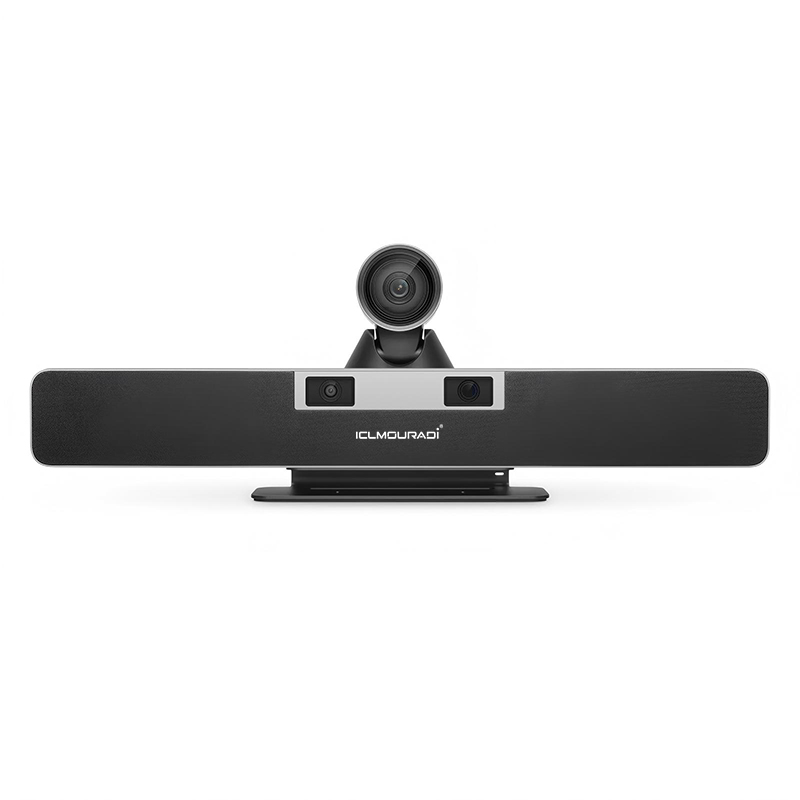

  • CVC606 soundbar Integrates close-up camera and Panoramic camera.
    Close-up camera:
    * 1/2.5 inches, CMOS, 8.29M pixels, 4KP30
    * Lens: 12X Optical Zoom; FOV: 70.1°
    Panoramic camera:
    * 1/2.8 inches, CMOS, 8.51M pixels, 4KP30
    * Fixed-focus lens: 120° FOV

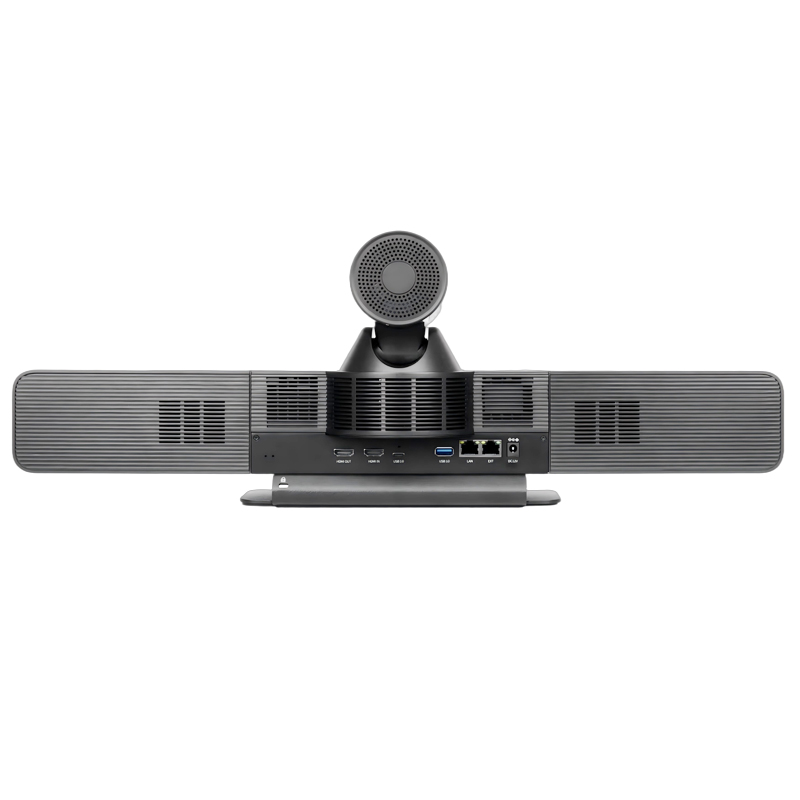

  • Interface: USB3.0 (Type C), USB3.0(Type A), HDMI OUT, 2xLAN
  • Built in 6 beam-forming microphones, up to 10m microphone pickup
  • Built in 2x full-range speakers (8W each)
  • Support Bluetooth 5.3 + Expansion MIC
  • AI Smart Features: Auto Framing, Voice Tracking, Smart Gallery, Multi-Camera Fusion Directing
  • Support BYOM/BYOD, wireless screen sharing
Ask for quote

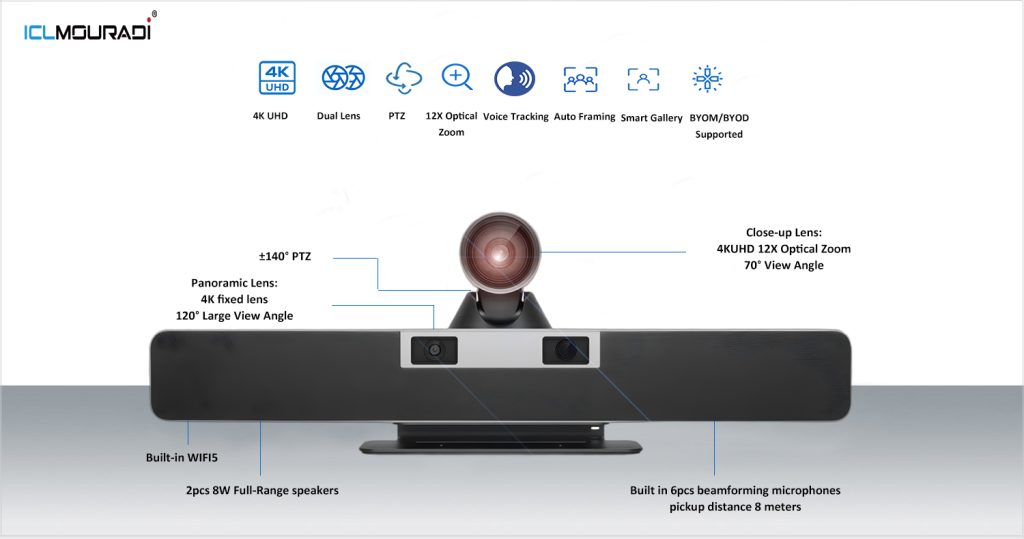

CVC606 video bar feature

Smart Gallery

CVCBar Pro conference bar can automatically detect the number of participants in the meeting and adjust the layout accordingly.

Support up to 8 screen layouts: 7 close-up views and one panoramic view.

CVC4KBar Pro 4K Video Bar Smart Gallery

Specifications

CLOSE-UP CAMERA PARAMETERS PANORAMIC CAMERA PARAMETERS
Video Resolution 4K@30/25fps,1080P@30/25fps,720P@30/25fps,etc. Video Resolution 4K@30/25fps,1080P@30/25fps,
720P@30/25fps,640*360@30/25fps
Sensor CMOS,1/2.5 inches,8.29 million effective pixels
(3840*2160)		 Sensor CMOS,1/2.8 inches,8.51 milion pixels
Lens Focal Length 12X,f=4.4~51.1mm,F1.8~2.6 Optical Lens Fixed-focus lens focal length:2.8mm
DFOV:117°HFOV:108°VFOV:74°
Horizontal Field of View 70.19~7.4°
Vertical Field of View 40.7°~4.2° Mechanical PTZ Not support
Horizontal Rotation Range -90°~+90° EPTZ Support
Vertical Rotation Range 23°~+23° White Balance Automatic
Horizontal Rotation
Speed Range		 1.7°~76°/s BLC Support
Vertical Rotation Speed
Range		 0.5°~15°/s Digital Noise Reduction 2D&3D Noise Reduction
Horizontal and
Vertical Flip		 Support Signal-to-Noise Ratio ≥55dB
Image Freeze Support USB FEATURES
Number of Preset Positions 255 Supported Operating
Systems		 Windows 7 (supports 1080p and below only),
Windows 8.1,Windows 10 or higher
Mac OSTM10.10 or higher
GoogleTM ChromebookTM Version 29.0.1547.70 or higher
Linux(UVC support required)
Preset Position Accuracy 0.1°
Mechanical PTZ Support
Auto Focus AF Support Hardware
Requirements		 2.4 GHz Intel@Core 2 Duo processor or higher
2 GB RAM or higher
USB 2.0 port(4K requires USB 3.0)
White Balance Automatic,Indoor,Outdoor,One-touch,Manual
BLC Support Connection Type USB3.0,backward compatible with USB2.0
Digital Noise Reduction 2D&3D Noise Reduction Color Space/Compression MJPEG/YUY2
Signal-to-Noise Ratio >=55dB USB Video Communication
Protocol		 UVC 1.1、UAC 1.0
AUDIO UVC PTZ Control Support
Speaker 2 full-range speakers INPUT  AND  OUTPUT  INTERFACE
Built-in Microphone 6 analog silicon microphones,beamforming
microphones,pickup distance 8 meters		 USB 3.0 1×USB 3.0,type-C,Support audio/video
transmission and firmware upgrade
Audio 3A Algorithm Support HDMI 1×HDMI,supports local video display
Sampling Rate Mic 32K,speaker 48K USB 2.0 1 channel,USB 2.0,type-A,female,connect to
USB wired expansion microphone
Extended MIC Support Network Port 1×RJ45,connect to network port expansion
microphone,support POE power supply
1×RJ45,10/100M adaptive Ethernet port,supports
network transmission of audio and video
GENERAL   SPECIFICATIONS
Security Kingston anti-theft lock socket Power Interface DC 12V
Operating/Stored
Temperature		 0℃~40℃/-40℃~60℃ Bluetooth Bluetooth 5.0,supports Bluetooth connection to mobile
phones,laptops and other devices,and transmits audio
Dimensions(LxHxD) Without bracket:600mmx127.1mm x182.1mm
With bracket:600mm x 127.1mm x217.1mm		 Wifi Wifi 5,supports BYOM wireless transmission and BYOD wireless
screen projection (extra screen projection device is required)

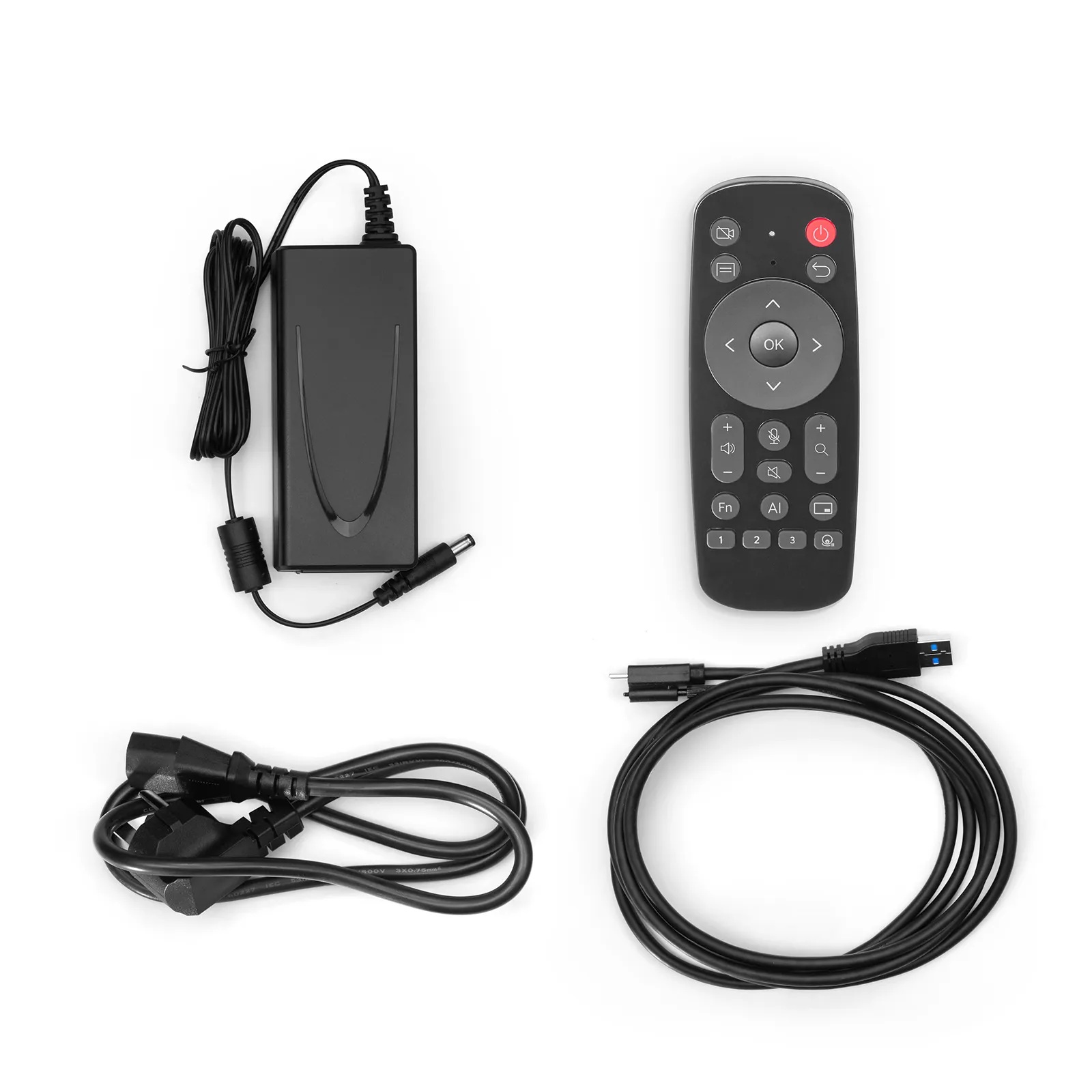

Remote Control Support
